Drainage Sheet Extrusion Line
Specialized in plastics extrusion machinery over 20 years.
Language
Specialized in plastics extrusion machinery over 20 years.
The production line using a variety of resins such HDPE, LLDPE, MDPE resin etc.(New materials & recycled materials are available) as raw materials, and adopts casting extrusion and vacuum plastic absorption process through concave and convex roller to produce single color / double color drainage sheet,Its shape is a circular cone, cylindrical, spherical shell with three-dimensional space and a certain support solidity. Liquids and gases can flow in it to achieve the effect of preventing and draining water.

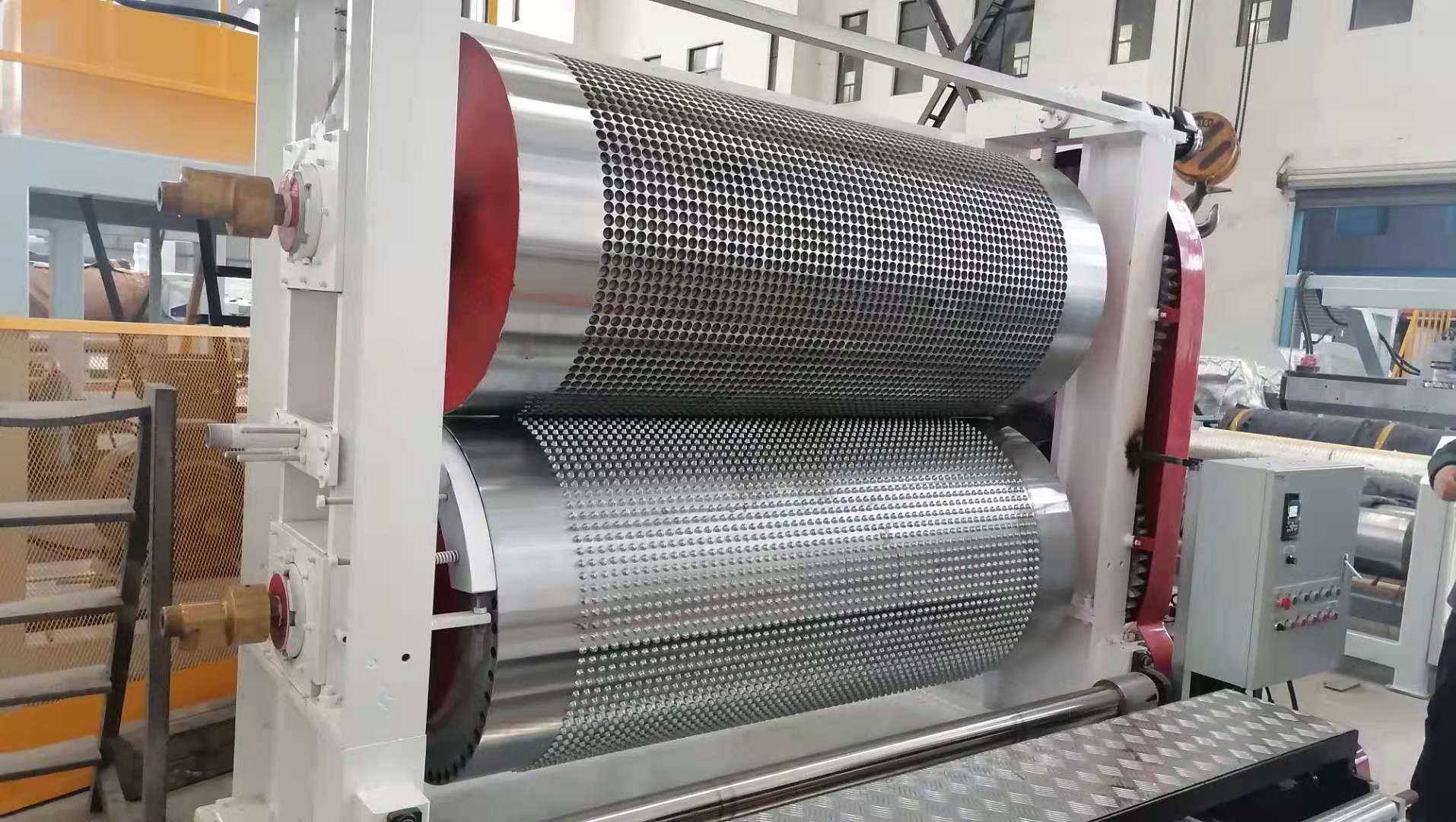

The drainage sheet line manufactured by our company has the advantages of even thickness and high output,one machine can produce different sizes of drainage sheet (same roller but changing different dimples of embossed roller).
Drainage sheet products are widely used in landscape engineering, construction engineering, traffic engineering, municipal engineering, decoration engineering and other fields.
Drainage sheet production line;drainage sheet machine; HDPE /LDPE drainge sheet machine; geosynthetic compund sheet

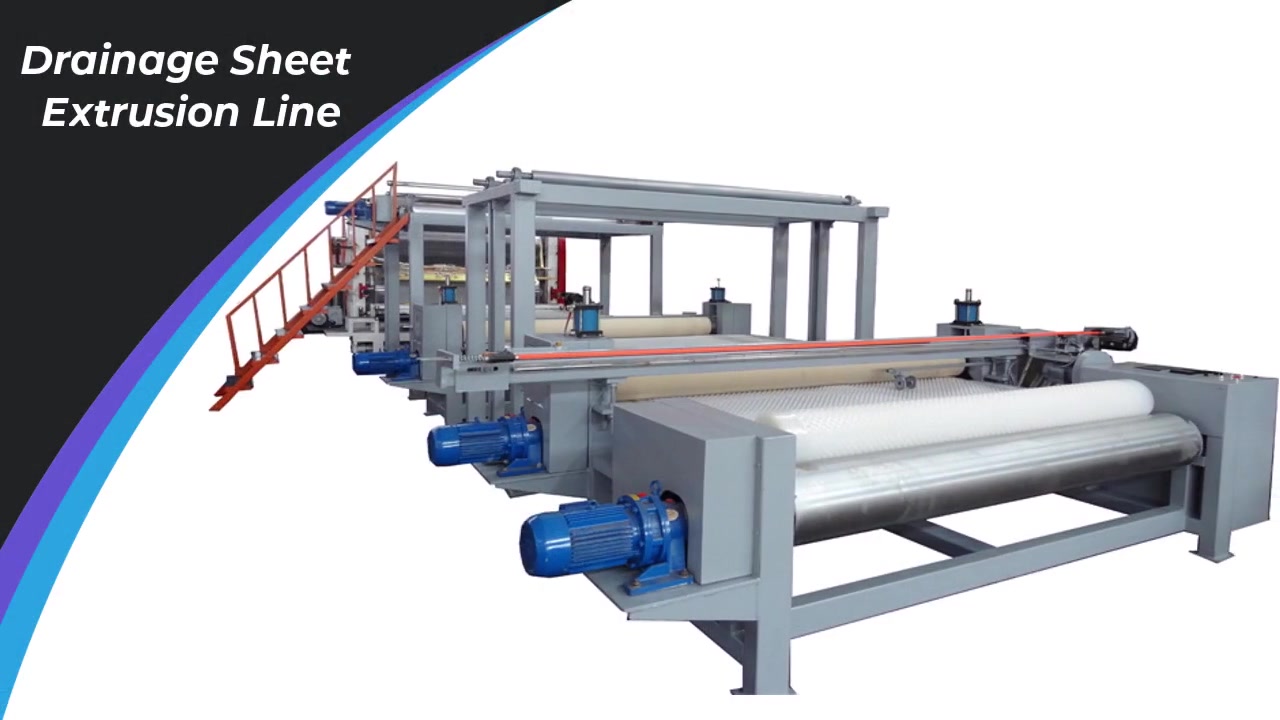

Drainage Sheet/Water Proof Sheet Production Line
Full detailed Parameters
| Model and specification | DL-1300 | DL-2300 | DL-3300 | DL-4300 | Marks |
| Max Width(mm) | 1000 | 2000 | 3000 | 4000 | |
| Thickness Range(mm) | 0.35--20 | 0.35--2.0 | 0.35--2.0 | 0.35--2.0 | |
| Liner Speed(m/m) | 1--6 | 1--6 | 1--6 | 1--6 | |
| Total Power(KW) | 160 | 260 | 340 | 460 | |
| Application Material | HDPE, MDPE, LDPE, LLDPE(can be 100% recycled material) | HDPE, MDPE, LDPE, LLDPE(can be 100% recycled material) | HDPE, MDPE, LDPE, LLDPE(can be 100% recycled material) | HDPE, MDPE, LDPE, LLDPE(can be 100% recycled material) | |
| Dimension(LXWXH) | 16mX2.3mX2.7m | 16mX3.3mX2.7m | 16mX4.3mX2.7m | 16mX5.3mX2.7m |
Scene of assmebly workshop
Take advantage of our unrivaled knowledge and experience, we offer you the best customization service.
The first thing we do is meeting with our clients and talk through their goals on a future project.
They are all manufactured according to the strictest international standards. Our products have received favor from both domestic and foreign markets.
They are now widely exporting to 200 countries.
