Since launched,20 has been named as one of the best and popular products in our company. Now it is easy for you to find and get the best quality of XPE Foam Lamination Machine DL at prices that fit your pocket. The launch of a product that perfectly solves the industry's pain points is that Changzhou Dali Plastics Machinery Co., Ltd. has always adhered to the goal of technological innovation, and the newly developed products perfectly solve the pain points that have been lingering in the industry for a long time. Once launched, they have been enthusiastically sought after by the market.

Application:FilmPlastic Processed:PE
Condition:NewScrew Design:Single-screw
Screw Material:38CrMoALAScrew diameter (mm):120
Screw L/D Ratio:33:1Screw Speed (rpm):55 rpm
Showroom Location:Egypt, Turkey, Viet Nam, India, Ukraine, MalaysiaPlace of Origin:Jiangsu, China
Brand Name:DaliVoltage:380V 50Hz 220V 50Hz
Dimension(L*W*H):15mx5mx2.2mPower (kW):280
Weight:13000 KGWarranty:1 Year
Key Selling Points:Competitive PriceApplicable Industries:Manufacturing Plant
Marketing Type:New Product 2022Video outgoing-inspection:Provided
Machinery Test Report:ProvidedWarranty of core components:1 Year
Core Components:Bearing, Motor, Pump, Gear, PLC, Pressure vessel, Engine, Gearbox, Screw, T-dieAfter-sales Service Provided:Engineers available to service machinery overseas
Thickness:0.018-0.06mmHeating power:60-85kw
Model:DL foam lamination machineCooling method:circulating water cooling
Laminate layers:2-3 layers lamination machineL/D ratio:65-160/28:1-33:1
resin:EVA/PE/TPRBrand:Dali
Type:Lamination Machine

XPE Foam Lamination Machine

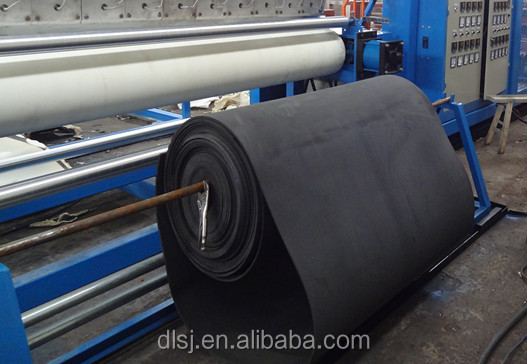

A complete product line adopting casting extrusion process. PE,EVA,TPR or PP material mixed with addtives is fed through feeding system to extruder and flat head extrusion die. Hot melt is coated on top of base fabric or paper from the unwinder passing calender rollers for forming and chill down, Then guided by pulling rollers and trimmed by two knives on both sides, the coated material is take up into rolls at winder station.



Process

  • Feeding systems with vacuum feeder
  • Extruder with screen changer
  • Flat Die-heads of internal cavity
  • Double station unwinder with automatic turnover mechanism
  • Calender with horizontal and vertical arrangement of the rolls
  • Chill rolls where extruded melt is transformed into a film and quickly cooled down
  • In-line triming equipment
  • Film guiding system
  • Surface, centre/surface and winding unit

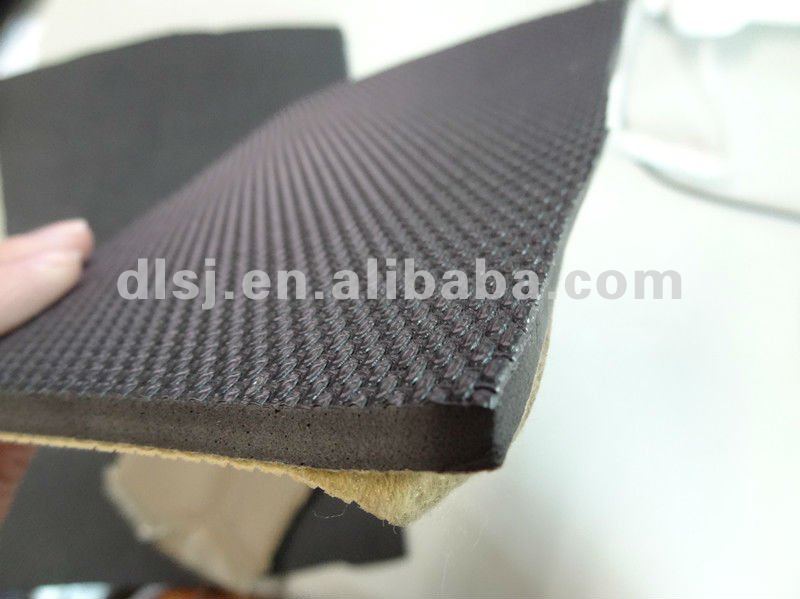

  Foot mat/Floor mat lamination machine adopts cast film process,extruding raw material, coating substrate, trimming, then rolling to final products or slicing up. Surface of lamination can be textured according to customers’ requirement.

The final products can be used in a variety of cars, household and so on.

                        XPE Foam Lamination Machine DL

XPE Foam Lamination Machine DL





 XPE Foam Lamination Machine DLTechnical Service:

      1. After test-run in the seller’s factory, the line will be delivered upon the buyer signing acceptance certificate

       2. The seller will send technicians for installation and commissioning.

        3.Guarantee Period: in one year.



 XPE Foam Lamination Machine DLXPE Foam Lamination Machine DLXPE Foam Lamination Machine DL
