Embossed film cast machine
Specialized in plastics extrusion machinery over 20 years.
Language
Specialized in plastics extrusion machinery over 20 years.
Changzhou Dali Plastics Machinery Co., Ltd. maintains stringent norms of quality to manufacture Professional single screw extruding machine with certificate. High-end technologies helps us ensure Professional single screw extruding machine with certificate quality, improve manufacturing efficiency, and reduce manpower input. It has extensive uses in the field(s) of Plastic Extruders. To keep ourselves ahead of other competitors, we will strive forward to improve our R&D strength and technology ability. Changzhou Dali Plastics Machinery Co., Ltd. hope that one day we will develop more and better products without relying on others' technologies.
| Application: | Film, film for disposable products | Plastic Processed: | PE |
| Condition: | New | Screw Design: | Single-screw |
| Screw Material: | 38CrMoALA | Screw diameter (mm): | 90 |
| Screw L/D Ratio: | 33:1 | Screw Speed (rpm): | 55 rpm |
| Showroom Location: | Egypt, Turkey, Viet Nam, Malaysia | Place of Origin: | Jiangsu, China |
| Brand Name: | Dali | Voltage: | 220V/380V |
| Dimension(L*W*H): | 12000x4000x3500mm | Power (kW): | 280 |
| Weight: | 13000 KG | Warranty: | 1 Year |
| Key Selling Points: | Automatic | Applicable Industries: | Manufacturing Plant |
| Marketing Type: | Hot Product 2022 | Video outgoing-inspection: | Provided |
| Machinery Test Report: | Provided | Warranty of core components: | 1 Year |
| Core Components: | Bearing, Motor, Pump, Gear, PLC, Pressure vessel, Engine, Gearbox, Screw, T-die | After-sales Service Provided: | Engineers available to service machinery overseas |
| Mould: | flat head die | Extruder: | Three screws |
| Barrel cooling: | air blower | Roller cooling: | circulating water |
| Raw material: | LDPELLDPETPECPE | Pattern: | customizable |
| Electrical control: | PLC touch screen | Product type: | plastic film machine |
Process
Feeding systems
Extruder with screen changer
Co-extrusion feedblocks
Die-heads of latest generation

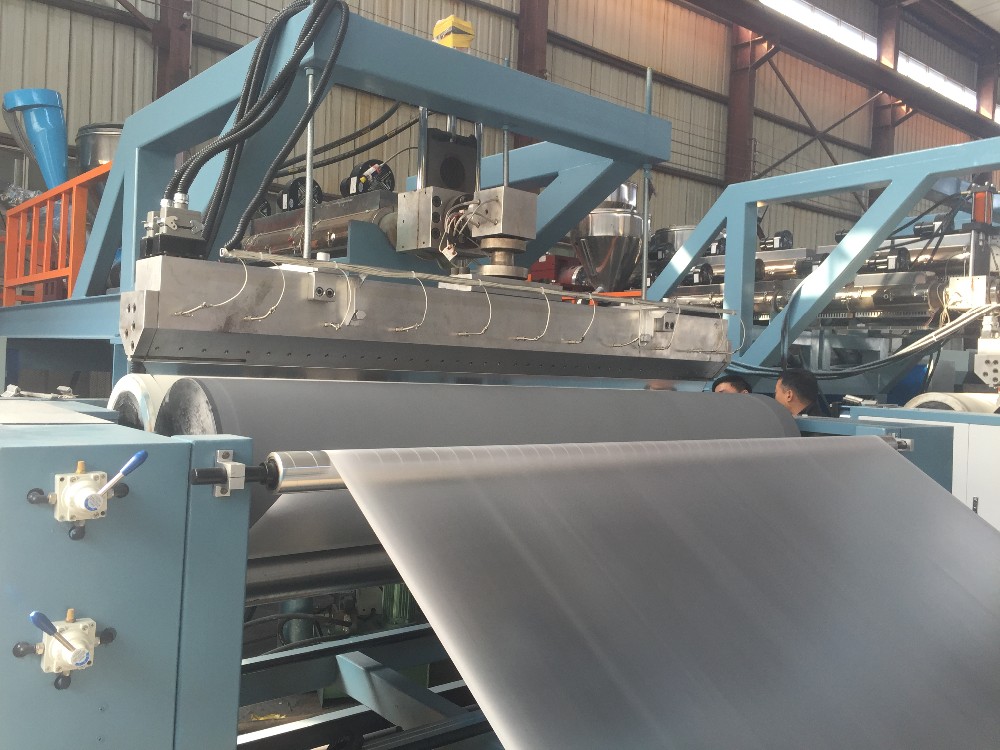

Chill rolls where extruded melt is transformed into a film and quickly cooled down
In-line triming equipment
Film guiding system
Surface, centre/surface and winding unit
Edge trim recycling system
Raw Materials & Finished Product Applications
Polymers of LDPE, LLDPE, HDPE, PP can be efficiently extruded on DL series of cast film lines .
Finished Product Applications
These films find an impressive variety of applications:
Disposable hygienic products(tablecloth,gloves,shoe cover, apron etc.)
Disposable garment(raincoat)
General purpose films(out layer film of baby diaper or sanitary napkin)
Remarks:All of our casting film production line specification and price are made to customers requirement.
Take advantage of our unrivaled knowledge and experience, we offer you the best customization service.
The first thing we do is meeting with our clients and talk through their goals on a future project.
They are all manufactured according to the strictest international standards. Our products have received favor from both domestic and foreign markets.
They are now widely exporting to 200 countries.
