Changzhou Dali Plastics Machinery Co., Ltd. has many years rich experience in manufacturing Plastic Film Graining Machine (E01-B). It is designed in accordance with the national standard. In aspect of the product design, our design team always pays close attention to the customers' taste and industry trends. Thanks to this, our Plastic Film Graining Machine (E01-B) can fully attract people's attention with its unique appearance. Moreover, it is excellent performance, making it worth the investment.
| Warranty: | 1 Year | Brand Name: | Dali, Dali |
| After-sales Service Provided: | Field installation, commissioning and training, Engineers available to service machinery overseas | Place of Origin: | Jiangsu, China (Mainland) |
| Type: | Granulating Production Line | Material: | PE film |
| Screw Design: | Single | Capacity: | 100m/min |
| Motor: | AC | Physical dimensions: | 600x600x1600 |
| Weight: | about 300kg |
Plastic Film Graining Machine(for edge trimming recycle)
1. Usage
The machine is featured with good reliability, easy maintenance and high stability. It is used for recycling and graining the offcut of CPE co-extrusion compound film and other material. It has a good economic benefit.
2. Brief introduction of structure

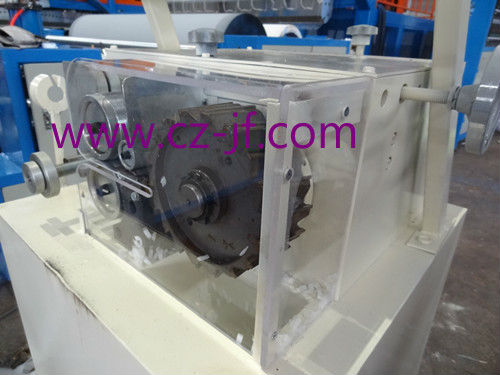

The machine is composed of following parts: Driving mechanism, feeding mechanism, pressing mechanism, transfer mechanism and shearing assembly.
3. Principle of operation
1). Used together with film machine: When making film on the machine, the film off-cut generated is fed immediately into the feeding mechanism of the graining machine. Then the feeding mechanism transfers the off-cut into the pressing mechanism, and the irregular off-cut is pressed into regular stripes. The regular stripes are transported by the transfer mechanism into the shearing assembly to be sheared into grains and flakes. The recycling process is completed
2). Used together with splitting machine: The off-cut from the splitting machine is rolled orderly on paper core. The rolls are sent to graining machine for making grains.
4. Main technical parameters
1). Motor power: 3kW
2). Output: 100m/min
3). External dimensions: 600x600x1600
4) Weight: 300kg
