As expected,Changzhou Dali Plastics Machinery Co., Ltd. unveils a new product relying on our advanced technologies and industrious employees. It is Nonwoven Fabric extrusion laminating machine and can be legally exported to foreign countries. Compared with other similar Jiangsu, China products in the market, 20 it can be very stable and long-lasting when applied in the field(s) of Plastic Laminating Machines. Get in touch with us - call, fill in our online form or connect via live chat, we are always happy to help.
| Place of Origin: | Jiangsu, China | Brand Name: | Dali |
| Condition: | New | Video outgoing-inspection: | Provided |
| Machinery Test Report: | Provided | Marketing Type: | Hot Product 2022 |
| Warranty of core components: | 1 Year | Core Components: | PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear, Pump, T-die |
| Voltage: | 380V | Power: | 280kw |
| Dimension(L*W*H): | 14000x12000x4000mm | Weight: | 38000 |
| Warranty: | 1 Year | Key Selling Points: | Competitive Price |
| Applicable Industries: | Garment Shops, Manufacturing Plant | Showroom Location: | Egypt, Viet Nam, Russia, Malaysia |
| After-sales Service Provided: | Engineers available to service machinery overseas | Model: | customizable |
| Screw: | single screw | Color: | customizable |
| Structure: | T&S | length-diameter ratio: | 65-160/28: 1-33: 1 |
| Installation service: | free | Training: | free |
| Certification: | CE |
Extrusion Lamination Plant
Adopts charging barrel and charging bar with large caliber and large length-diameter ratio of 65-160/28: 1-33: 1, internal die cavity, as well as T+S structure advanced in the world.
The raw fabrics and finished fabrics are wound and rewound in double station automatic crank turn-over mechanism. The machine adopts pneumatic roll changing mode and the rewinding tension can be regulated mechanically for facilitating maintenance. The fabric is wound by a moment motor with auto control device.
Application:
Non-woven fabrics, paper, woven fabrics, geotextile, epe,foam,aluminium foil,printed films and so on in single-layer or multi-layers film
|
Main technical parameters : |
| Model and specifications(mm) |
1400
|
1700
|
1900 | 2200 | 2400 | 2800 |
| Suitable fabrics | Plastic woven fabrics , Non-woven fabrics,Paper | |||||
| Laminate layers |
Three layers, Two layers,Multilayer
|
|||||
| Thickness of compound film (mm) |
0.01-0.8
|
|||||
| Max. compound width(mm) |
1200
|
1500
|
1700 |
2100 |
2300 | 2600 |
| Heating power (kW) |
60
|
65
|
68 |
73 |
77 | 85 |
| Cooling method |
Circulating water cooling
|
|||||
More equipment pictures:

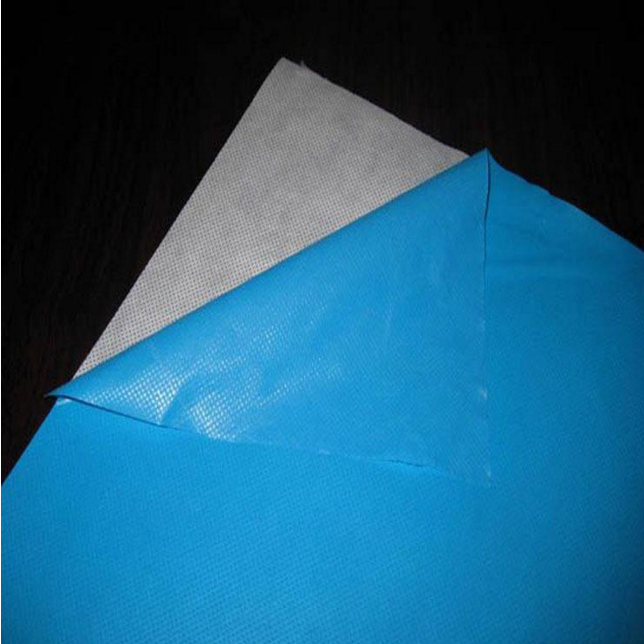

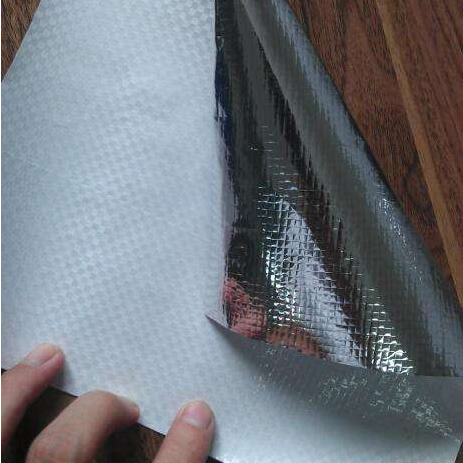

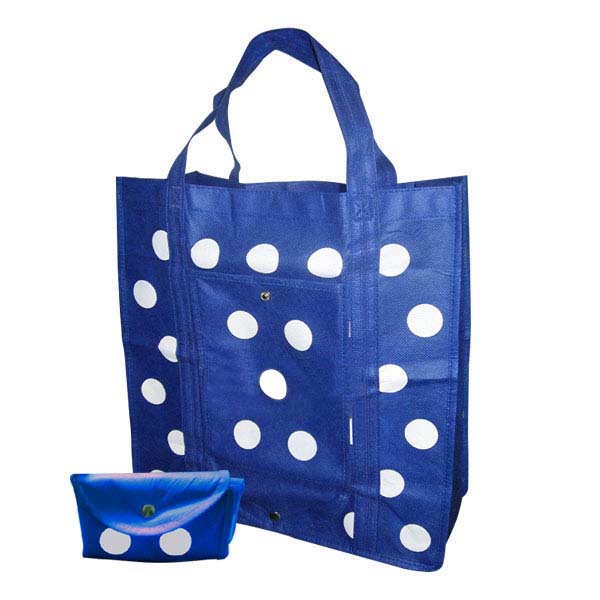

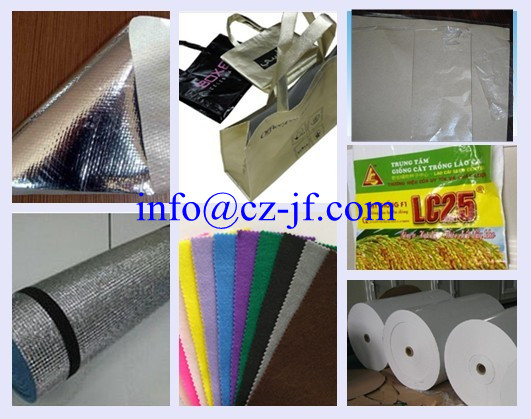

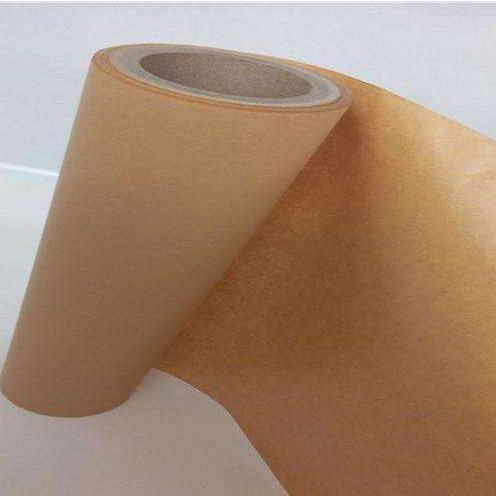

Final products:
Technical Service
1. After test-run in the seller’s factory, the line will be delivered upon the buyer signing acceptance certificate
2. The seller will send technicians for installation and commissioning.
3.Guarantee Period: in one year
