Geotextile coating product line
VR

Buyers have always reached the best quality providing and reliable Large size geomembrane composite machine to make membrane manufacturers. To meet various needs of customers, we supports customized Large size geomembrane composite machine to make membrane. After years of growth and development,Changzhou Dali Plastics Machinery Co., Ltd. have constructed characteristic corporate culture systems and confirmed our business principle of 'customer first'. We will always focus on customers' needs and promise that we will provide the most satisfying and valuable products.

Application:Profile, SheetPlastic Processed:PE, PVC/LDPE/PP/EVA
Condition:NewScrew Design:Single-screw
Screw Material:38CrMoALAScrew diameter (mm):160
Screw L/D Ratio:33:1Screw Speed (rpm):60 rpm
Showroom Location:Egypt, Turkey, Indonesia, RussiaPlace of Origin:Jiangsu, China
Brand Name:Dali, DaliVoltage:380V
Dimension(L*W*H):26000x22000x4500Power (kW):960
Weight:128000 KGWarranty:1 Year
Key Selling Points:Competitive PriceApplicable Industries:Manufacturing Plant, Other
Marketing Type:Hot Product 2022Video outgoing-inspection:Provided
Machinery Test Report:ProvidedWarranty of core components:1 Year
Core Components:Bearing, Motor, Pump, Gear, PLC, Pressure vessel, Engine, Gearbox, Screw, T-dieAfter-sales Service Provided:Overseas third-party support available
Geotextile Production Line (compound):geocomposite machineCertification:CE
Machine color:customizableMain unit power(kw):75-150
Cooling method:circulating water cooling

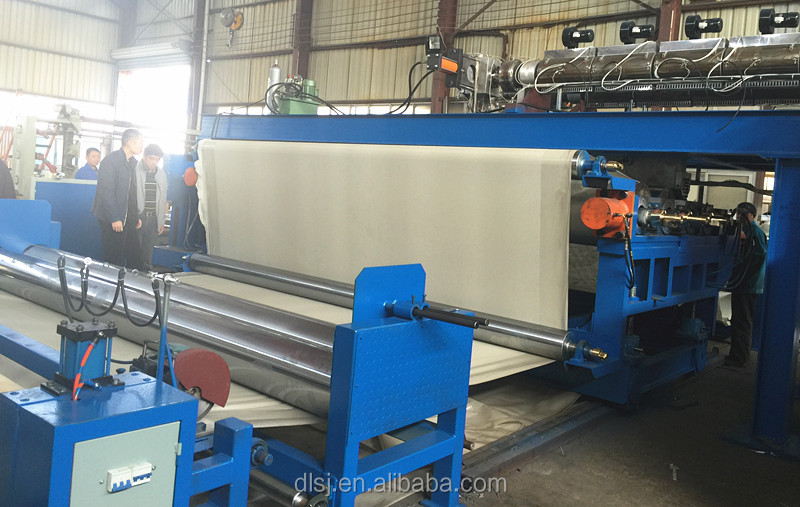

Geotextile compound line /Large size geomembrane composite machine to make membraneis a complete production line adopting calendering compound process to heat,extrude,press,cool LDPEPPPVCEVA and other raw material.It is used for producing monolayer or multilayer compound film for all kinds of geotexitlenon-woven fabric weaving fabric. Also it can produce geotextile flashing,etc.



geomembrane composite machine

Usage:  Sanitation Project(MSW landfill,sewage treatment,toxic and hazardous compounds disposal sites storage of dangerous goods);Water Conservancy(rivers,lakes water reservoir dam seepage control and stopping leaks and consolidation and the impermemeable

drains);Construction Projects(subwayconstruction,building underground engineering and the roof garden impermeable,sewage pipe linging);Landscape Works(artificial lake,pool); Agricutural Engineering(reservoir,drinking water tanks,water storage pound the irrigation system impervious);Transportation(highway) and so on.



Large size geomembrane composite machine



 Large size geomembrane composite machine to make membrane

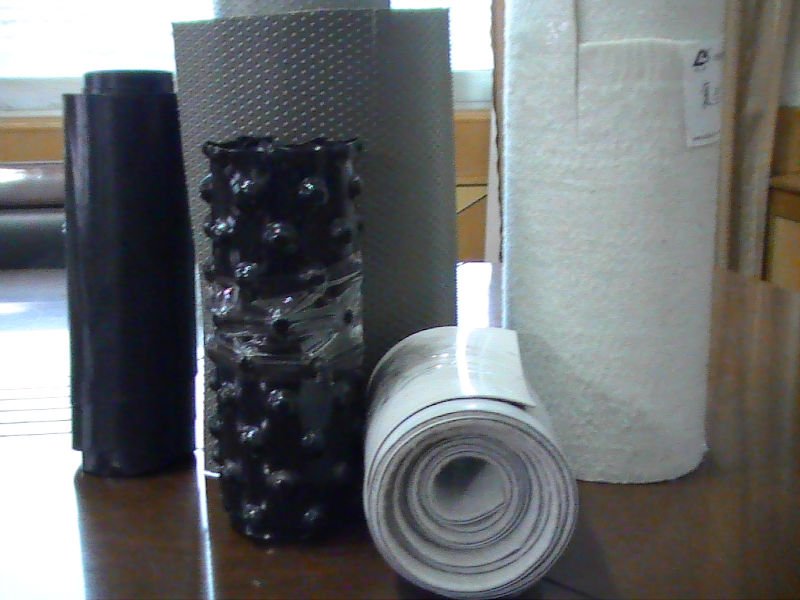

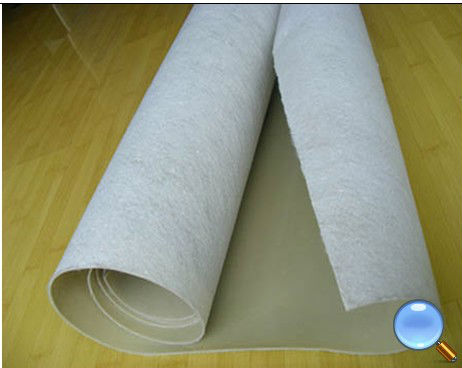

Products:



Large size geomembrane composite machine to make membraneLarge size geomembrane composite machine to make membrane









Main technical parameters :

Suitable fabrics
Geotextile,Plastic woven fabrics,Non woven fabrics
Model and specifications
3300
4500
6300 8300
Laminate layers
one farbric one film,two fabrics one film,flashing
Thickness of compound film (mm)
0.2-2.5
Flashing thickness(mm)
0.5-2.5
Main machine power(kw)
75 - 150
Specifications of embossing roller (mm)
400×3300
500×4500
600×6300
800×8300
Max. compound width
3000
4200

6000

8000

Cooling method
Circulating water cooling
