Buy top of the line quality of 4500mm HDPE Extrusion Sheet Geotextile Laminating Sheet Machinery at low prices from some of the best manufacturers of the products. The use of in 4500mm HDPE Extrusion Sheet Geotextile Laminating Sheet Machinery manufacturing has allowed us for more efficient use of resources and personnel.The product is highly recognized in the application field(s) of Plastic Extruders. So, shake hands with us, expand your business, and increase your clientele.

Application:Sheet, Film, Extrusion Laminating MachineryPlastic Processed:PE, EVA, HDPE/PP, PE/PP, Lldpe, LDPE, LDPE/LLDPE/EVA Extrusion Laminating Machinery
Condition:NewScrew Design:Single-screw
Screw Material:38CrMoALAScrew diameter (mm):160
Screw L/D Ratio:33:1Screw Speed (rpm):60 rpm
Showroom Location:NonePlace of Origin:Jiangsu, China
Brand Name:Dali, DaliVoltage:380V 50HZ
Dimension(L*W*H):20mx2.5mx2.2mPower (kW):980
Weight:138000 KGWarranty:1 Year
Key Selling Points:MultifunctionalApplicable Industries:Building Material Shops, Manufacturing Plant
Marketing Type:Hot products 2022Video outgoing-inspection:Provided
Machinery Test Report:ProvidedWarranty of core components:1 Year
Core Components:Bearing, Motor, Pump, Gear, PLC, Gearbox, ScrewExtruder:single screw
Mould:Flat head die Extrusion Laminating MachineryThikcness:0.2-2.5mm
Usage:railway, road and civil engineerAutomatic Grade:Automatic
After Warranty Service:Online supportCertification:CE Certificate

4500mm HDPE Extrusion Sheet Geotextile Laminating Sheet Machinery

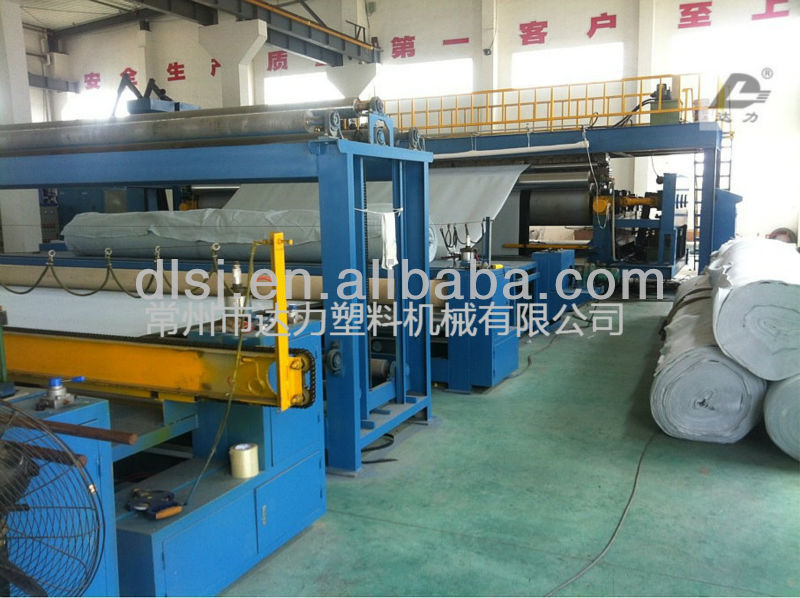

Mixture of LDPE, LLDPE or EVA is melted and extruded through extruder and flat extrusion die head onto geotextile. The composite sheet is conveyed to the winder station through calender rollers, haul-off and edge trim station and cross cutter.



4500mm HDPE Extrusion Sheet Geotextile Laminating Sheet Machinery4500mm HDPE Extrusion Sheet Geotextile Laminating Sheet Machinery




4500mm HDPE Extrusion Sheet Geotextile Laminating Sheet Machinery



Main technical parameters of Extrusion Laminating Machinery:

Suitable fabrics
Geotextile,Plastic woven fabrics,Non woven fabrics
Model and specifications
3300
4500
6300 8300
Laminate layers
one farbric one film,two fabrics one film,flashing
Thickness of compound film (mm)
0.2-2.5
Flashing thickness(mm)
0.5-2.5
Main machine power(kw)
75 - 150
Specifications of embossing roller (mm)
400×3300
500×4500
600×6300
800×8300
Max. compound width
3000
4200

6000

8000

Cooling method
Circulating water cooling
The machine can be designed and manufactured according to the customer's requirement.
