Geomembrane sheet extrusion line
Specialized in plastics extrusion machinery over 20 years.
Language
Specialized in plastics extrusion machinery over 20 years.
Changzhou Dali Plastics Machinery Co., Ltd. fully grasped the market demand, combined with internal resources and external forces, successfully launched PE/PVC geomembrane production line. The research and development team is the core competence to PE/PVC geomembrane production line. It enables us to become a leader in the Geomembrane sheet extrusion line. So, shake hands with us, expand your business, and increase your clientele.
| Application: | Sheet, sheet | Plastic Processed: | PE, HDPE, HDPE/PP, Lldpe, LDPE, HDPE, LDPE,EVA, TPO |
| Condition: | New | Screw Design: | Single-screw, Double screws |
| Screw Material: | 38CrMoALA | Screw diameter (mm): | 160 |
| Screw L/D Ratio: | 33:1 | Screw Speed (rpm): | 60 rpm |
| Showroom Location: | United Kingdom, Viet Nam, Indonesia, Russia, Uzbekistan | Place of Origin: | Jiangsu, China |
| Brand Name: | Dali, Dali | Voltage: | 380V |
| Dimension(L*W*H): | 22000x16000x4500mm | Power (kW): | 960 |
| Weight: | 138000 KG | Warranty: | 1 Year |
| Key Selling Points: | Competitive Price | Applicable Industries: | Building Material Shops, Manufacturing Plant, Other |
| Marketing Type: | Hot Product 2022 | Video outgoing-inspection: | Provided |
| Machinery Test Report: | Provided | Warranty of core components: | 1 Year |
| Core Components: | Bearing, Motor, Pump, Gear, PLC, Pressure vessel, Engine, Gearbox, Screw, T-die | After-sales Service Provided: | Engineers available to service machinery overseas |
| Calender: | three roller | Cooling method: | water |
| Winder: | Friction winder | Certification: | CE |
| Power: | 350KW |

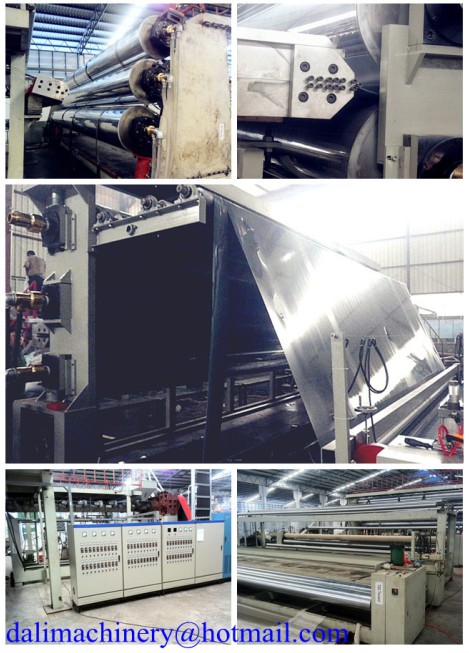

PE /PVC geomembrane production line
• Feeding systems with pneumatic or helix loaders
• Extruder with screen changer
• Co-extrusion feedblocks for adjustment of layer ratio and layer distribution
• Flat Extrusion Die-heads
• Chill rolls where extruded melt is transformed into a film and quickly cooled down
• In-line triming equipment
• Sheet guiding system
• Surface winding unit
• Edge trim recycling system
The machine can also be desinged to make lamination on top of many kinds of geotextiles, non-woven fabrics, woven fabrics.
Raw Materials & Finished Product Applications
Polymers of LDPE, LLDPE, HDPE, EVA can be efficiently extruded on DL series of geomembrane extrusion line.
Geomembrane applications:
• Sanitary project(Landfill,sewage treament,toxic and hazardous compounds disposal)
• Water conservancy(river,lakes water reservior dam seepage control)
• Construction projects(subway construction, roof garden, sewage pipe liner)
• Landscape Works(artificial lake, pool)
• Agriculture engineering(reservior, drinking water tanks, water storage pond, irrigation system)
• Transportation(railway,highway)
|
Main technical parameters : |
|
Model and specifications
|
3300
|
5300
|
6300
|
7300 | 8300 |
|
Suitable fabrics
|
Geotextile, Non-woven fabrics, Plastic woven fabrics
|
||||
|
Laminate layers
|
Three layers, Two layers
|
||||
|
Thickness of compound film (mm)
|
0.2-2.5
|
||||
|
Main machine power(kw)
|
75-200
|
||||
|
Max. compound width
|
3000
|
5000 |
6000
|
7000 |
8000 |
|
Heating power (kW)
|
90
|
280 |
300
|
400 |
500 |
|
Cooling method
|
Circulating water cooling
|
||||
| The machine can be designed and manufactured according to the customer's requirement. |
Take advantage of our unrivaled knowledge and experience, we offer you the best customization service.
The first thing we do is meeting with our clients and talk through their goals on a future project.
They are all manufactured according to the strictest international standards. Our products have received favor from both domestic and foreign markets.
They are now widely exporting to 200 countries.
