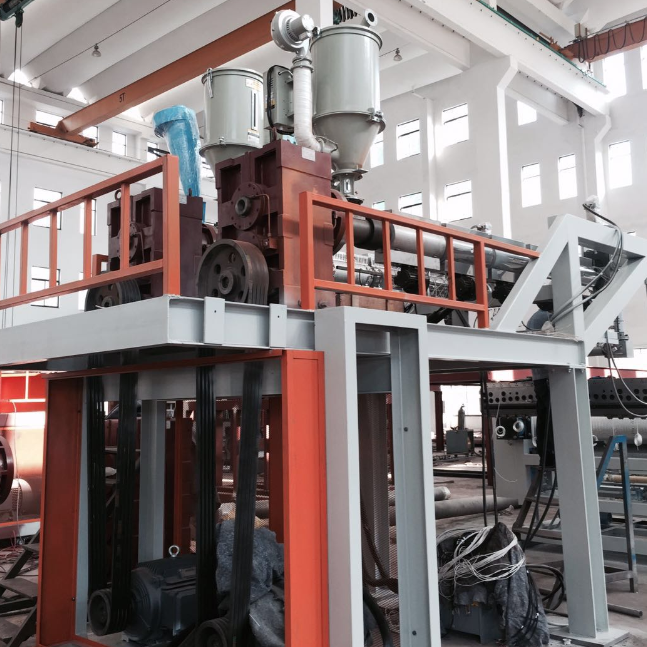

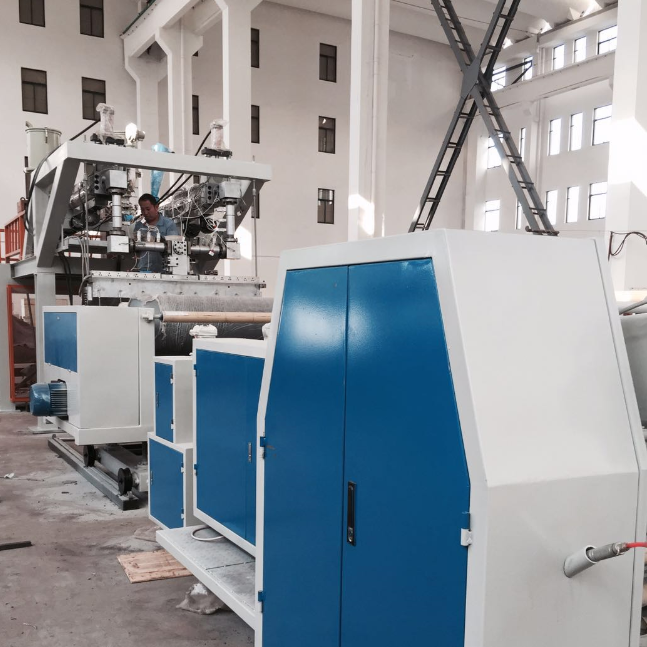

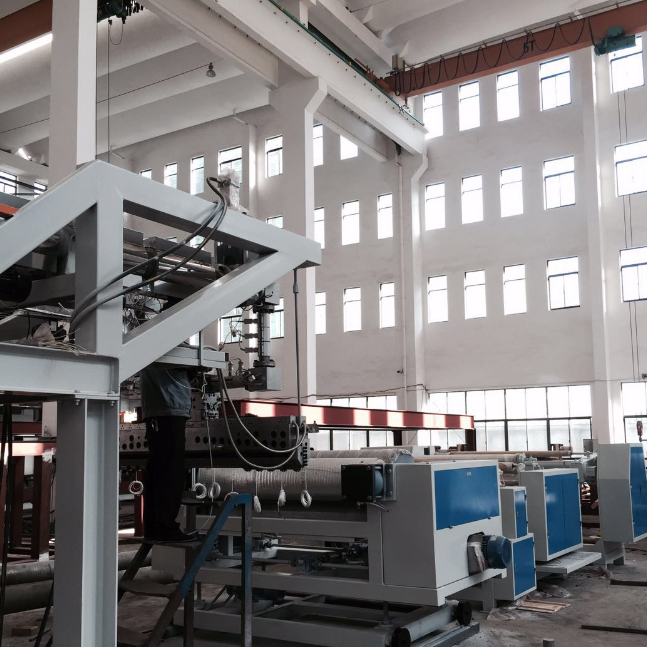

Three-layer coextrusion cast film machine
VR

While Changzhou Dali Plastics Machinery Co., Ltd. consciously carrying out personnel training and technological innovation, it also continuously strengthens external communication and exchanges to improve its own competitiveness. Talents and technology are indispensable supporting factors for the Three layers Cast Film Machine to be widely praised. Guided by market forces,Changzhou Dali Plastics Machinery Co., Ltd. will use a comprehensive range of measures to enhance our strength. For example, we will invest heavily in the R&D project and keep developing new products so as to lead the market trend.

Place of Origin:Jiangsu, China, Jiangsu, China (Mainland)Brand Name:Dali-Cast Film Machine, Dali Three layers Cast Film Machine
Condition:NewVoltage:380V/50HZ
Power:90kwDimension(L*W*H):12000x4000x3.500mm
Weight:10-20TWarranty:1 Year
After-sales Service Provided:Field installation, commissioning and training, Engineers available to service machinery overseasCertification:CE
Plastic Processed:PVC/ PP/PE/EVAApplication:Three layers Cast Film
Screw Design:Single-screwScrew:Double-screw
Model:DL-2300 Three layers Cast Film MachineUsage:table cloth/ shower cap
Pattern:flat /embossed

ThreelayersCast filmmachine



Processof ThreelayersCastFilmMachine

  • Feedingsystems
  • Extruderwithscreenchanger
  • Co-extrusionfeedblocks
  • Die-headsoflatestgeneration
  • Chillrollswhereextrudedmeltistransformedintoafilmandquicklycooleddown
  • In-linetrimingequipment
  • Filmguidingsystem

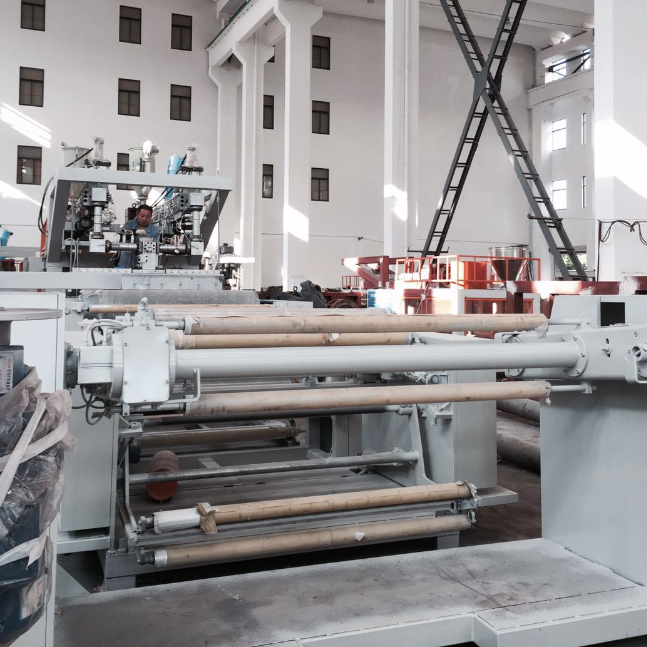

  • Surface,centre/surfaceandwindingunit
  • Edgetrimrecyclingsystem
  •
  •
RawMaterials&FinishedProductApplications

PolymersofLDPE,LLDPE,HDPE,PPcanbeefficientlyextrudedonDLseriesofcastfilmlines.





MaintechnicalparameterofThreelayersCastFilmMachine:

Productspecification
800-3000mm
Productthickness
0.02-0.6mm
Productionrate
5-90m/min
Filmdistribution
A-B-C
Extruderblendingratio
Accordingtouserneeds
Totalpower
350kW
ThreelayersCastFilmMachine canbedesignedandmanufacturedaccordingtothecustomer'srequirement.



ThreelayersCastFilmMachine
