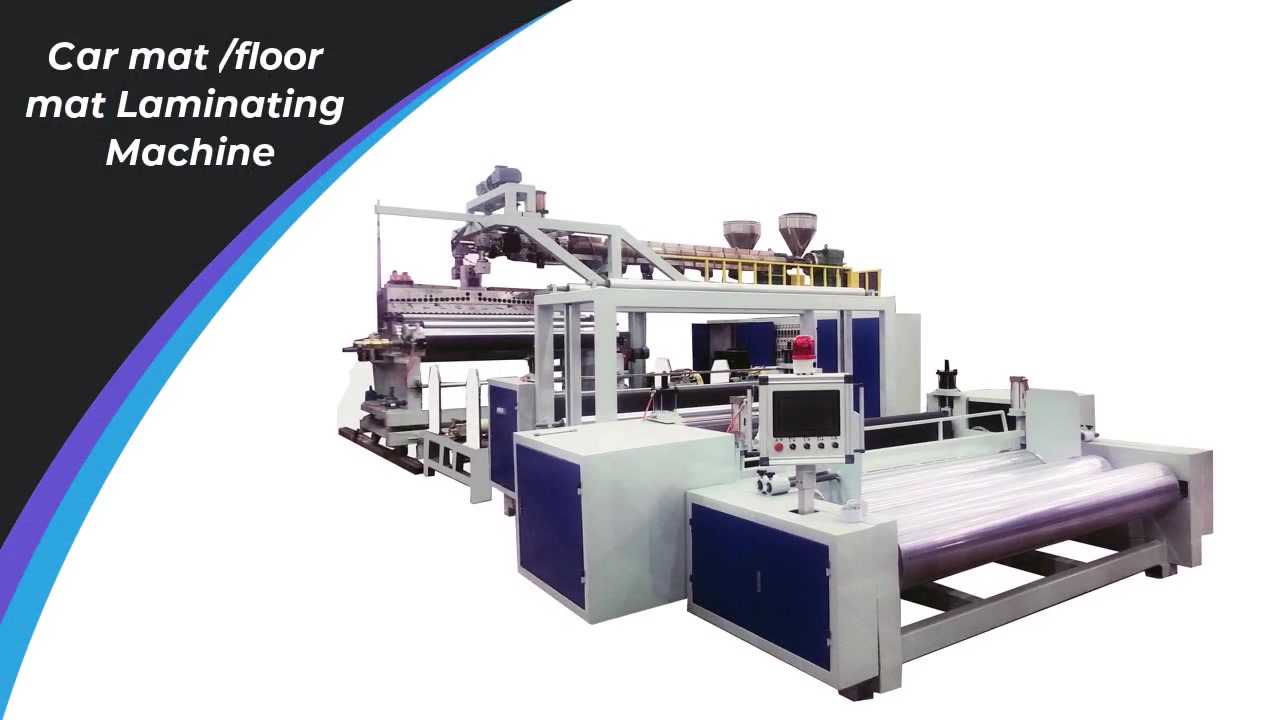

This production line fully absorbs and combines with the laminating compound, and optimizes the design of products such as floor mats, foot pads, roof cloths, and carpets, with stable quality and powerful functions.
Surface of lamination can be textured according to customers’requirement.
The final products can be used in a variety of cars, household and so on.
Processing Flow:
Unwinding---Extrusion---Coating---Trimming---Pulling---Rolling or Slitting
This machine composited by the feeding device, extruding part, die, material collecting part, winding part, side controlling device, cutting device, cutting device etc.
Technical parameters:
Model | DL-1600 | DL-1800 | DL-2200 |
Screw Dia. | Φ75mm | Φ75mm | Φ90mm |
Die Width | 1800mm | 2000mm | 2400mm |
Product width | 800-1500mm | 900-1700mm | 1000-2200mm |
Coating speed | 60-110m/min | 60-110m/min | 60-110m/min |
L:D | 32:1 | 32:1 | 32:1 |
The max. dia. of the material | Φ1200mm | Φ1200mm | Φ1200mm |
Total power | 50kw | 80KW | 110KW |
Dimension | 11300x6500x3000mm | 11300x7500x3000mm | 11300x8500x3000mm |
Take advantage of our unrivaled knowledge and experience, we offer you the best customization service.
The first thing we do is meeting with our clients and talk through their goals on a future project.
They are all manufactured according to the strictest international standards. Our products have received favor from both domestic and foreign markets.
They are now widely exporting to 200 countries.
