Changzhou Dali Plastics Machinery Co., Ltd. In order to better meet the diversified needs of the market, relying on its own technology, resources, talents and other advantages, it has successfully created 4 meters Geomembrane Extrusion Line. 4 meters Geomembrane Extrusion Line performs powerful function and has strong advantages. We offer a range of design services to help you get exactly what you want.

Application:Sheet, Film, sheetPlastic Processed:PE, HDPE, HDPE/PP, Lldpe, LDPE, HDPE, LDPE,EVA, TPO
Condition:NewScrew Design:Single-screw
Screw Material:38CrMoALAScrew diameter (mm):180
Screw L/D Ratio:33:1Screw Speed (rpm):60 rpm
Showroom Location:Indonesia, India, Russia, South Korea, UkrainePlace of Origin:Jiangsu, China
Brand Name:DaliVoltage:220V/380V
Dimension(L*W*H):17000X12000X3500mmWeight:130000 KG
Warranty:1 YearKey Selling Points:Competitive Price
Applicable Industries:Building Material Shops, Manufacturing Plant, OtherMarketing Type:New Product 2022
Video outgoing-inspection:ProvidedMachinery Test Report:Provided
Warranty of core components:1 YearCore Components:Bearing, Motor, Pump, Gear, PLC, Pressure vessel, Engine, Gearbox, Screw
After-sales Service Provided:Engineers available to service machinery overseasMould:flat head
Calender:three rollerCooling method:water
Winder:Friction winderProduct Type:Geomembrane extrusion line
Certification:CE CertificateAutomatic Grade:Automatic

4 meters Geomembrane Extrusion Line    4 meters Geomembrane Extrusion Line 4 meters Geomembrane Extrusion Line

 Geomembrane Extrusion Line





• Feeding systems with pneumatic or helix loaders

• Extruder with screen changer

• Co-extrusion feedblocks for adjustment of layer ratio and layer distribution

• Flat Extrusion Die-heads

• Chill rolls where extruded melt is transformed into a film and quickly cooled down

• In-line triming equipment

• Sheet guiding system

• Surface winding unit

• Edge trim recycling system

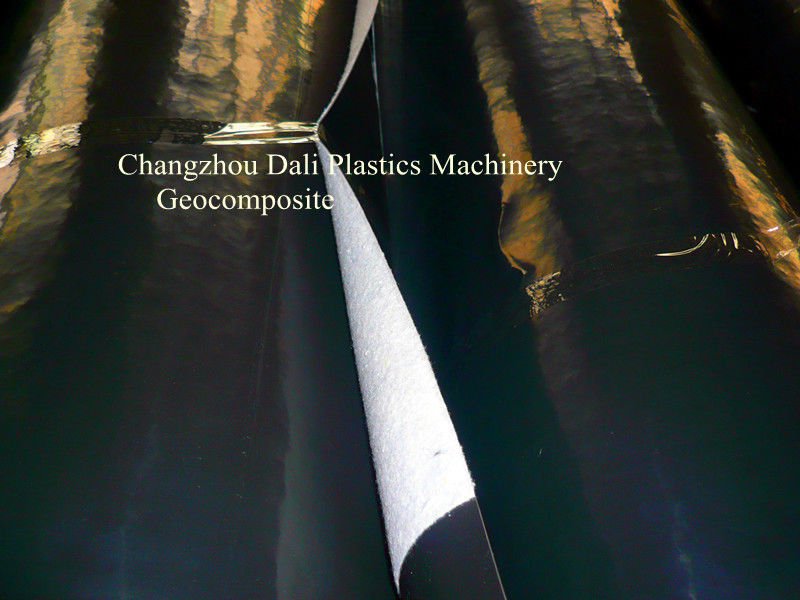

The machine can also be desinged to make lamination on top of many kinds of geotextiles, non-woven fabrics, woven fabrics.



Raw Materials & Finished Product Applications

Polymers of LDPE, LLDPE, HDPE, EVA can be efficiently extruded on DL series of geomembrane extrusion line.



Geomembrane applications:

• Sanitary project(Landfill,sewage treament,toxic and hazardous compounds disposal)

• Water conservancy(river,lakes water reservior dam seepage control)

• Construction projects(subway construction, roof garden, sewage pipe liner)

• Landscape Works(artificial lake, pool)

• Agriculture engineering(reservior, drinking water tanks, water storage pond, irrigation system)

• Transportation(railway,highway)



Main technical parameters :

Model and specifications
3300
5300
6300
7300 8300
Suitable fabrics
Geotextile, Non-woven fabrics, Plastic woven fabrics
Laminate layers
Three layers, Two layers
Thickness of compound film (mm)
0.2-2.5
Main machine power(kw)
75-200
Max. compound width
3000
5000
6000

7000

8000

Heating power (kW)
90
280
300

400

500

Cooling method
Circulating water cooling
The machine can be designed and manufactured according to the customer's requirement.
