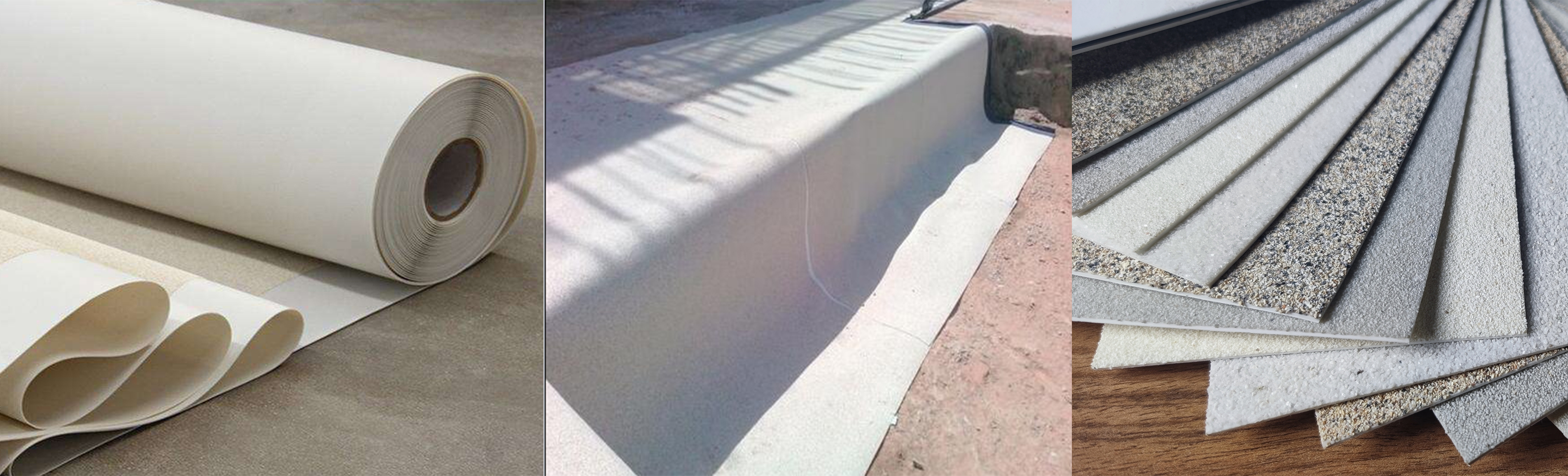

This machine can produce polymer waterproof coil, at the same time can be configured with front and back composite self-adhesive, adhesive isolation film, sand device to produce self-adhesive/anti-adhesive new waterproof coil, to achieve a multi-purpose machine.
This machine can produce polymer waterproof coil, at the same time can be configured with front and back composite self-adhesive, adhesive isolation film, sand device to produce self-adhesive/anti-adhesive new waterproof coil, to achieve a multi-purpose machine.
PARAMETERS （for reference only） | |
| Material | TPO, HDPE, LLDPE, EVA granule resin |
Working width | 1000mm max |
Thickness range of sheet | 0.3-2.5mm（thickness tolerance±5% ） |
Mechanical speed | 0.5-6m/min |
Total extrusion capacity | About 400-600kg/h（varies with material） |
Diameter of screw,L/D | Φ150x33:1 |
Diameter of steel roller(mm) | Φ500 |
Length of roller | 1500mm |
Length of T-die | 1500mm |
Power supply | 3P,380V（ ±10% ） 50Hz, Single phase, 220V 50H |
Installation power | About 300kw (actual power consumption about 40%-60%) |
（Machine size） | About20000×4000× 4000 mm |
Equipment&Brand list（for reference only）
No. | Description | Qty |
| 1 | 500kg Mixer machine | 1 set |
| 2 | Feeding system | 1 set |
| 3 | 150/33:1 Single screw extruder | 1 set |
| 4 | Hydraulic Screen changer | 1 set |
| 5 | T-die 1500mm | 1 set |
| 6 | Three-roller calender | 1 set |
| 7 | Take off unit Ⅰ | 1 set |
| 8 | Take off unit Ⅱ | 1 set |
| 9 | Cross cuting unit | 1 set |
| 10 | Friction Winder | 1 set |
| 11 | Electric control syste | 1 set |

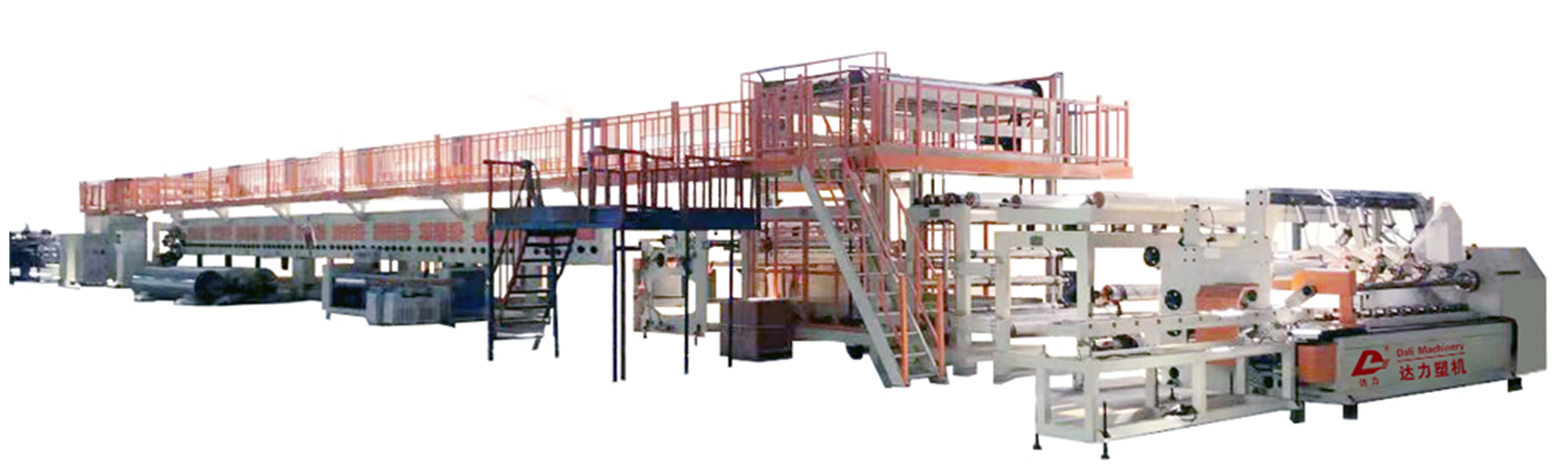

Polymer waterproof coilGluing production line
Features:

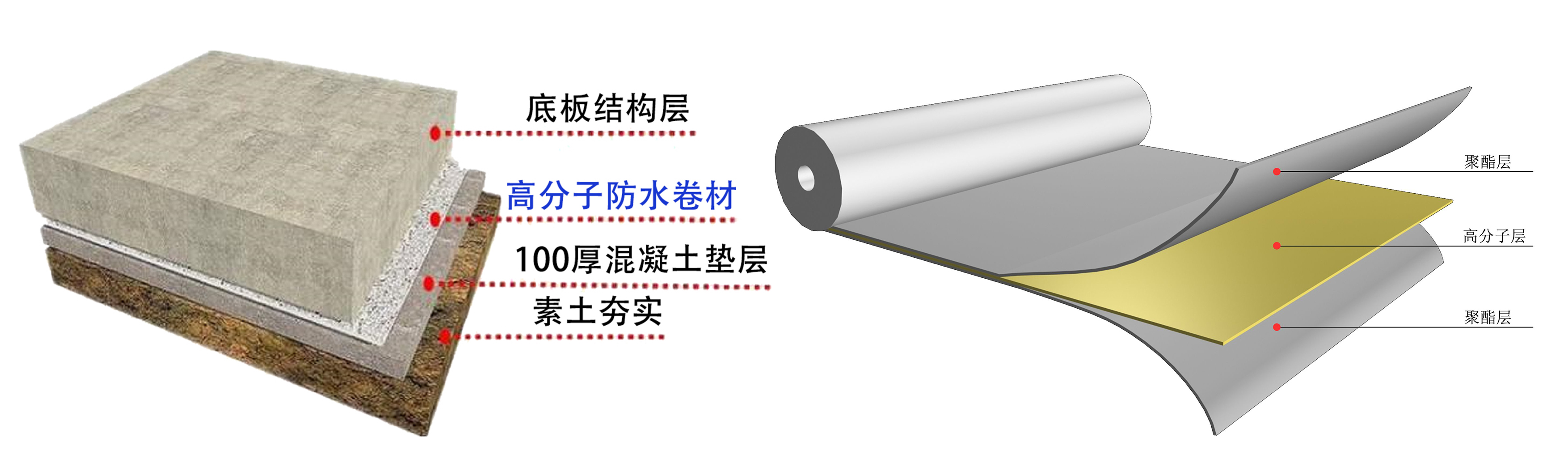

Good structural performance, peeling strength, tensile strength, fracture resistance, elongation, high and low temperature resistance, anti-aging and other comprehensive properties are very good, long service life cycle, simple and convenient construction.
Purpose:
Mainly used in subway, tunnel, water conservancy and other projects.
The machine adopts PLC centralized control to realize automatic control of parameter setting, data calculation, feedback, alarm and other functions.
Process flow
(self-adhesive) : correction → gluing → coating the whole film → edge coating → sand setting → sand pressing → sand return → Storage → correction → cutting → winding → unloading
Gummed part
| Main technical parameters（for reference only） | |
Device direction | When operating the coating head, the walkway is on the left |
Equipment color | The color palette shall be provided by Party A |
Maximum mechanical speed | 10 m/min |
Machine weight | About 20T |
Equipment appearance size | 2100mm*6000mm*5000mm |
Effective gluing width | 2000mm |
Coating amount | 100-500g/㎡ |
All roll lengths | 2100mm |
Second and third roll (side film), fourth roll (intermediate film or whole film) | The diameter is 500mm |
Winding device | 4set |
Winding device | 1set |
Winding diameter | Less than or equal to 40cm |
Sand section
Sand roller | Steel roll |
Sand traction roll | Steel roller bar |
Sand roller | Two silicone rollers |
Sand bucket | One set (including diverting device) |
Sand bucket device | One set (automatic sand return |
Operating platform (including stairs) | It is welded and assembled by square pipe and pattern plate |
Additives: installation book, Manual book, tool box will be sent with machine.
24 hours hot line ,we will reply email within 12 hours.
All products are guaranteed for one year, if any problems happen in guarantee period, our company will maintain for free.
We will arrange the shipment and delivery the cargo to your nearest port, save time and cost.
Take advantage of our unrivaled knowledge and experience, we offer you the best customization service.
The first thing we do is meeting with our clients and talk through their goals on a future project.
They are all manufactured according to the strictest international standards. Our products have received favor from both domestic and foreign markets.
They are now widely exporting to 200 countries.
