This laminator production line dopts casting composite process, TPR or TPE materials, through extrusion heating, and the substrate composite rolling, cooling and winding Into the complete sets of equipment.
Extruder with Φ150 L/D 35:1 screw and the barrel, the inner cavity of the die, with the advanced structure of the use of T + S type, pneumatic roll change , Magnetic power up control unwinding, mechanical or gas-hydraulic correction, easy to operate and maintain, winding motor using frequency control.
Uses: Suitable for all kinds of single-layer and multi-layer composite of various types of Carpet /Car Mat back lamination.
1800mm-4000mm TPR carpet back car mat back laminator production line
The production line adopts cast film process to heat and extrude PE、EVA、TPR、PP,and other material,coat to the substrates(base fabric),press and cool,finally take up in rolls.
Features of Machine
1. The machine control is integrated by PLC system with parameter setting, data transmission and feedback and alarm etc..
2.All kinds of Laminating film and casting film can be made by the line as multi-purpose.
3.The machine can be configured with Mikro synchronous control system to fully automatically control the G/SM of film and online remote diagnostic system.
Application:
Suitable for laminating into a singe-layer or multi-layers by a variety non-woven fabrics,paper,woven fabrics, or mesh,foam,aluminium foil,top cover for car,carpet, printed films and so on.

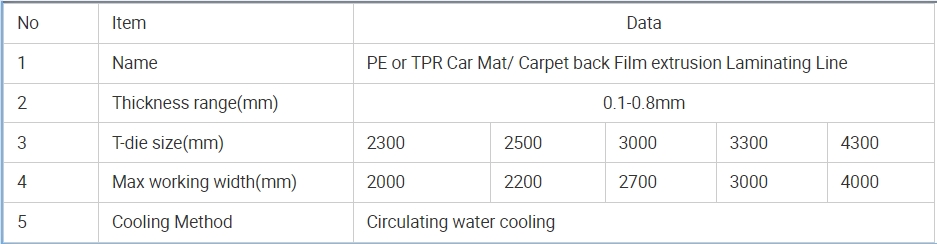

Main technical parameters

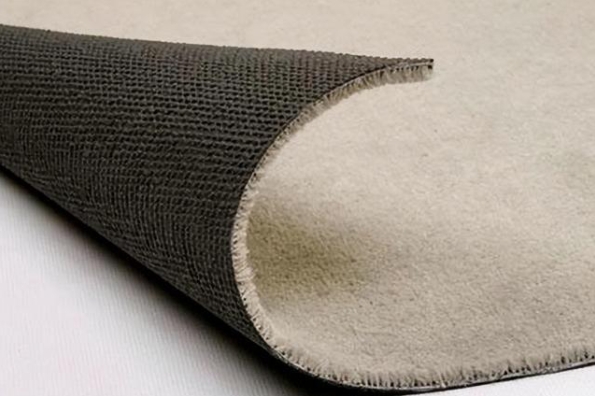

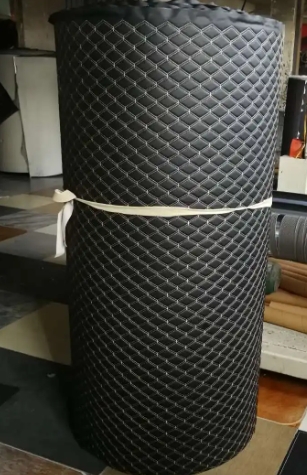

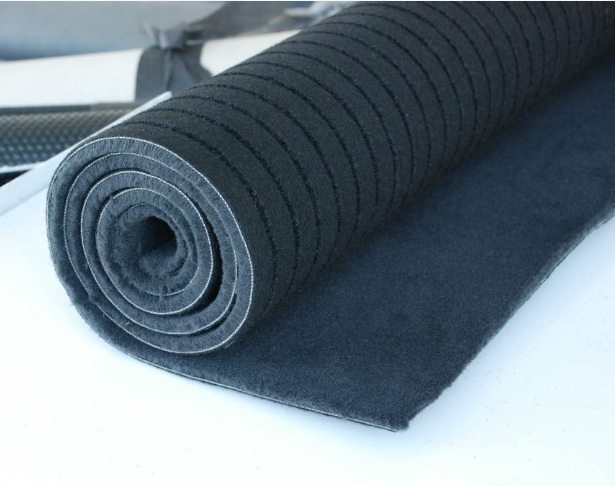

Final products sample:
