Specialized in plastics extrusion machinery over 20 years.

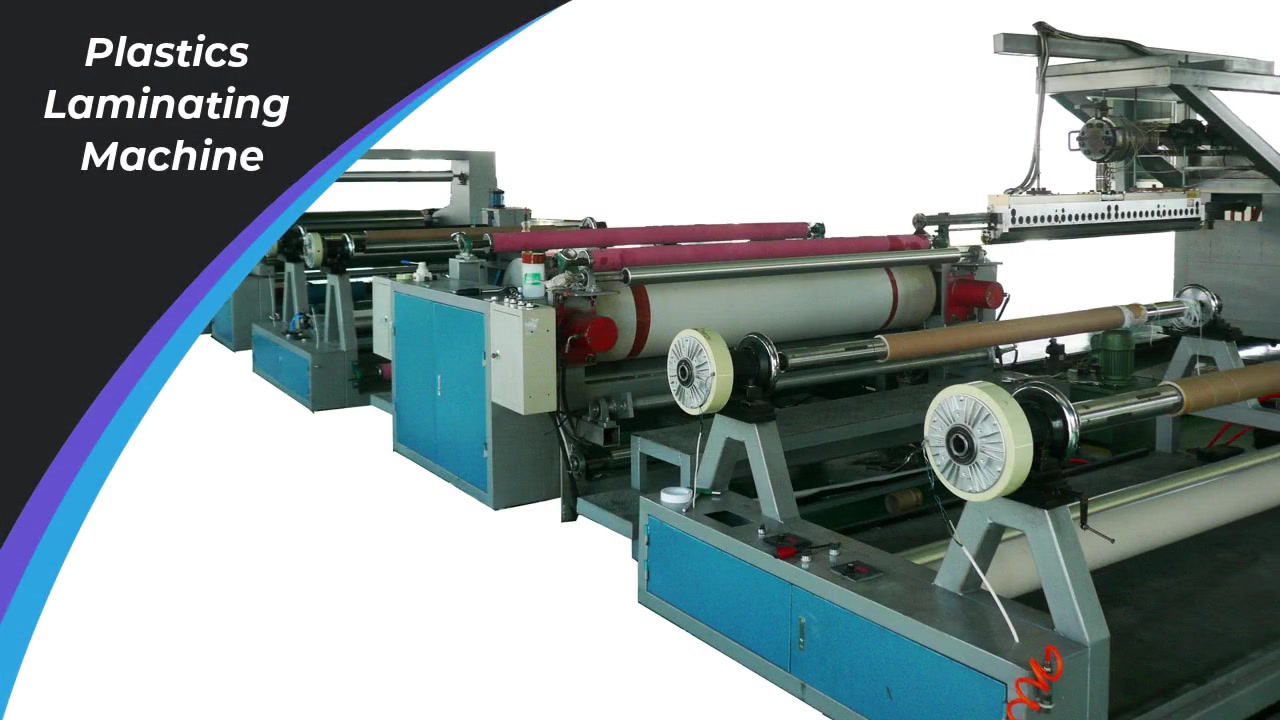

The production line adopts cast film process to heat and extrude PE、EVA、TPR、PP,and other material,coat to the substrates(base fabric),press and cool,finally take up in rolls.
The machine can be manufactured according to customer’s requirement.It can be designed into computer automatic control,with vector frequency converter,PLC integrated control,human friendly interface and touch screen displayer.
Usage:suitable for laminating a variety of non-woven fabrics,paper,woven fabrics,mesh,foam,aluminium foil,top cover for car,carpet,printed films and so on in single layer or multilayers
Full detaied of specifcations:
Material | PE,EVA,LLDPE,LDPE, PP and other granule |
Working width | 1100--2500mm max |
Thickness range | 0.015mm to 0.1mm |
Screw Dia. and L/D | Φ90---120×35:1 X1 |
| T die width | 1400---2800mm |
| Roller surface length | 1400--2800mm |
| Winding Diameter | Φ500 |
| Power supply | Three Phase 480V( ±10% )60hz, Single Phase 120V 60Hz 3P,480V( ±10% ) 60Hz, Single phase, 120V 60Hz |
| Mechanical speed: | 30-100m/min |
| Extrusion capacity(Maximum) | 80~180kg/h(varies with material) |
Installation power | About 90--180kw ( actual consumption is 40%-50% of total installation power) |
| Installation space | L=12M; W=4.5m; H=3.5m |
Processing flow:
Unwinding ⇒Extrusion ⇒Laminating⇒Trimming⇒Pulling⇒Slitting or Rolling

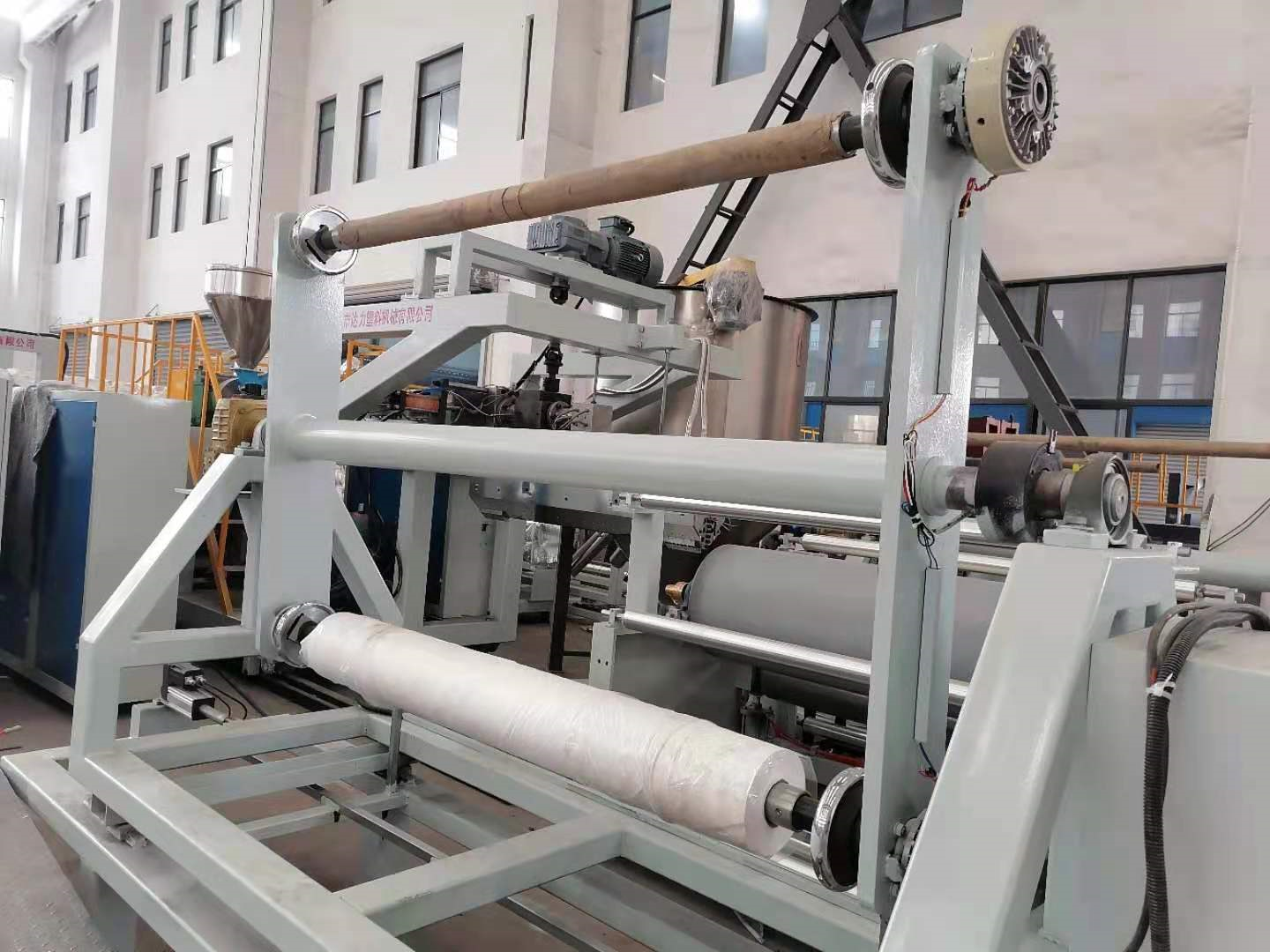

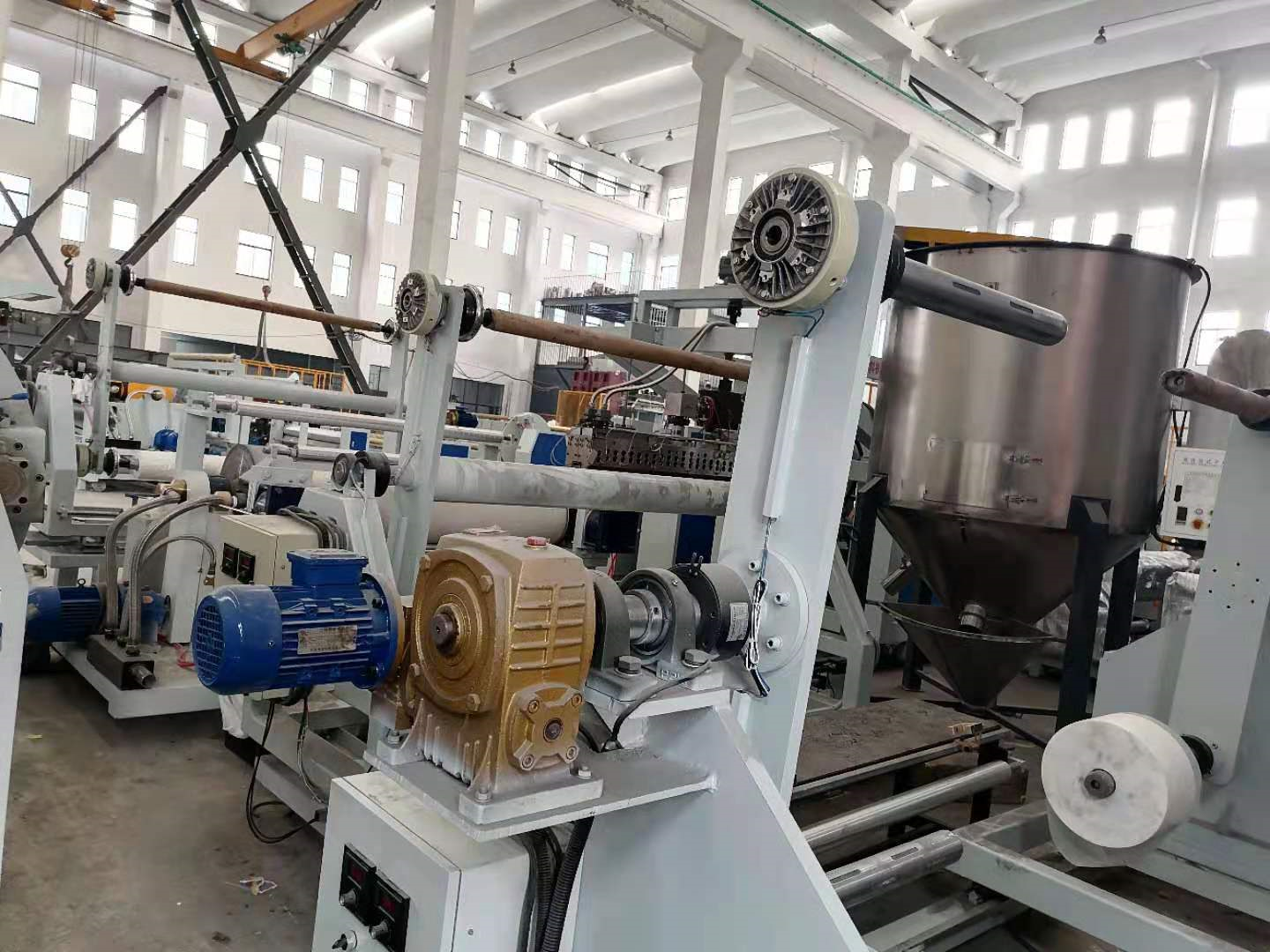

Scene of assmebly workshop
All products are guaranteed for one year, if any problems happen in guarantee period, our company will maintain for free.
We can provide design, installation and debugging services or remote maintenance teaching.
Any problem: If you have any questions or any demands, we will reply you within 24 hours.
Provide picture, video, instruction and product brochure.
Take advantage of our unrivaled knowledge and experience, we offer you the best customization service.
The first thing we do is meeting with our clients and talk through their goals on a future project.
They are all manufactured according to the strictest international standards. Our products have received favor from both domestic and foreign markets.
They are now widely exporting to 200 countries.
