Concerning the industry development,Changzhou Dali Plastics Machinery Co., Ltd. has been driven to develop new products to keep us competitive. Talents and technology are indispensable supporting factors for the 2400 Nonwoven Fabric Lamination PE Film Coating PE Film Machine to be widely praised. So, shake hands with us, expand your business, and increase your clientele.

Application:FilmPlastic Processed:PE, EVA, Lldpe, LDPE
Condition:NewScrew Design:Single-screw
Screw Material:38CrMoALAScrew diameter (mm):120
Screw L/D Ratio:33:1Screw Speed (rpm):1480 rpm
Showroom Location:Egypt, Turkey, Viet Nam, Indonesia, India, Russia, MalaysiaPlace of Origin:Jiangsu, China
Brand Name:DaliVoltage:380V
Dimension(L*W*H):14000x12000x4000Power (kW):280
Weight:38000 KGWarranty:1 Year
Key Selling Points:Competitive PriceApplicable Industries:Garment Shops, Manufacturing Plant, Home Use, Other
Marketing Type:Hot Product 2022Video outgoing-inspection:Provided
Machinery Test Report:ProvidedWarranty of core components:1 Year
Core Components:Bearing, Motor, Pump, Gear, PLC, Pressure vessel, Engine, Gearbox, Screw, T-dieAfter-sales Service Provided:Engineers available to service machinery overseas
Suitable fabrics:plastic woven fabrics, nonwoven fabrics, paperThickness of compound film:0.015-0.2mm
Heating power:160kwCooling method:circulating water cooling
Lamination:nonwoven laminationWinder:automatic lamination machine
Brand:Dali nonwoven lamination machineCertification:CE

Product Overview

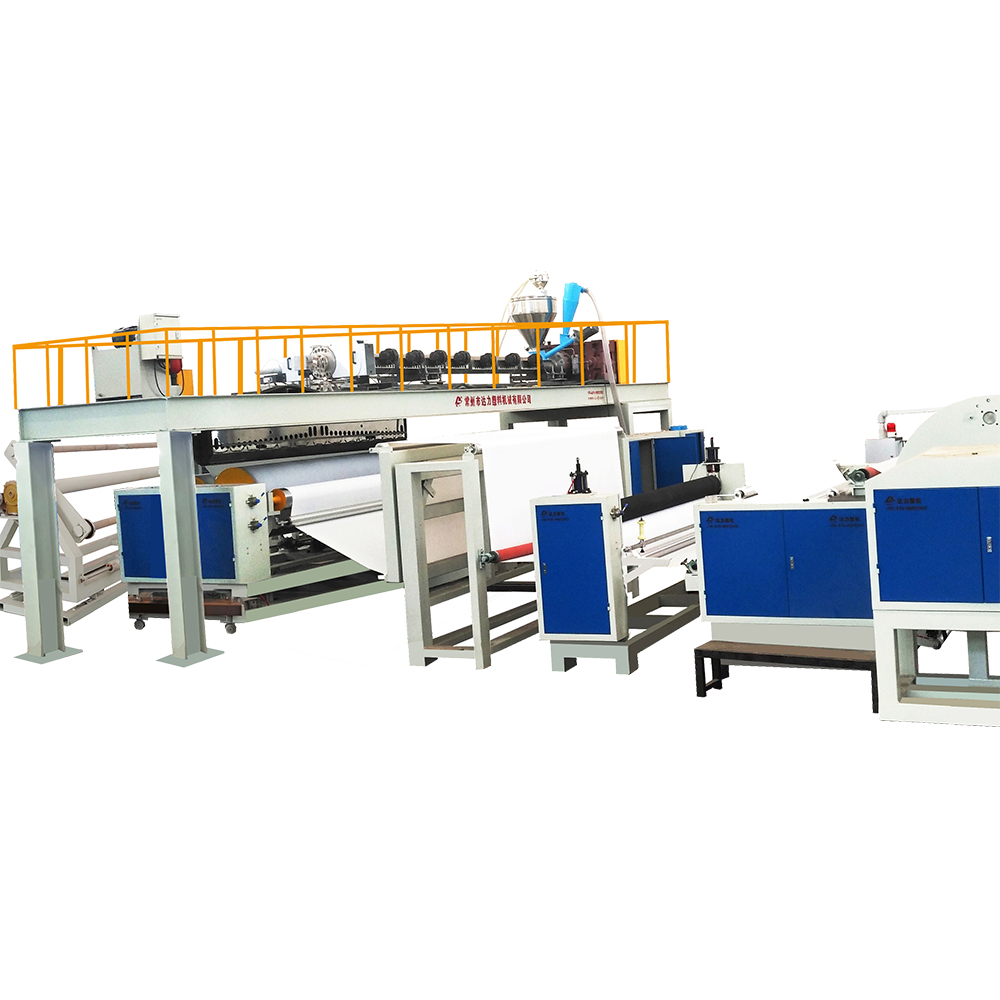

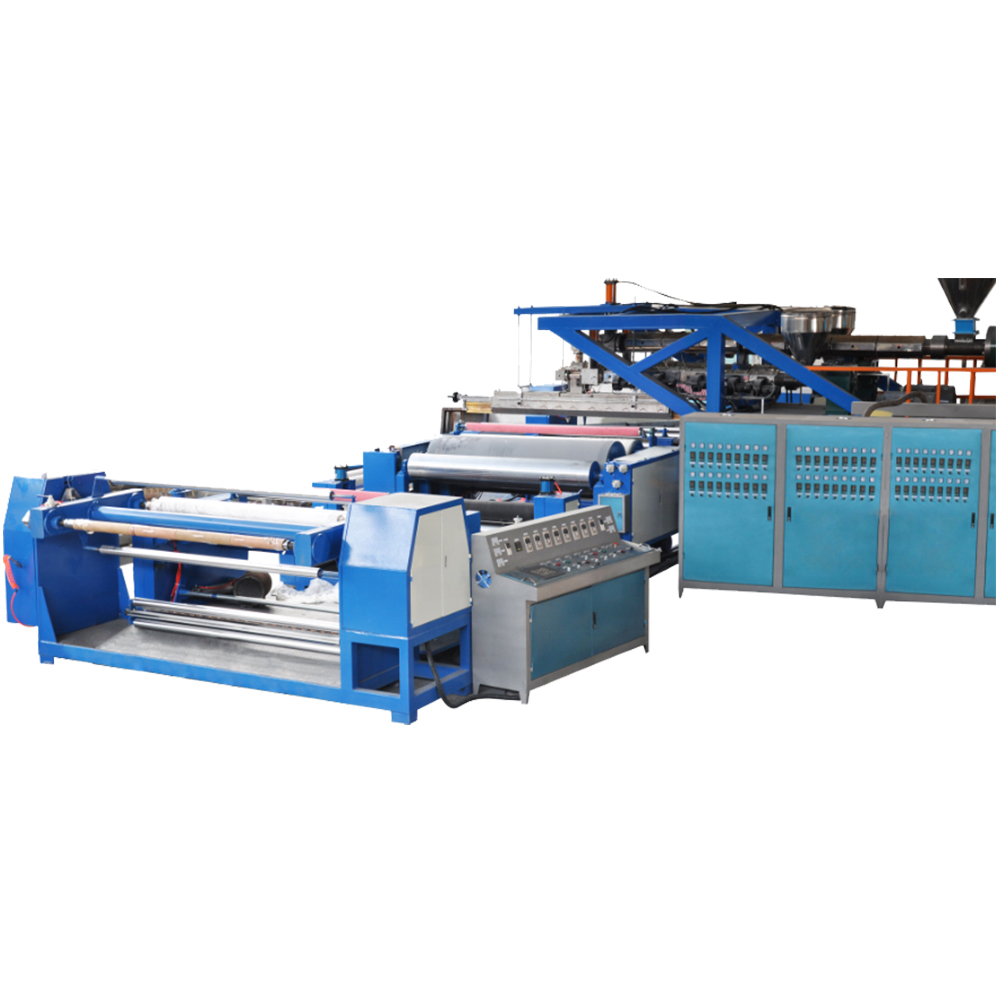

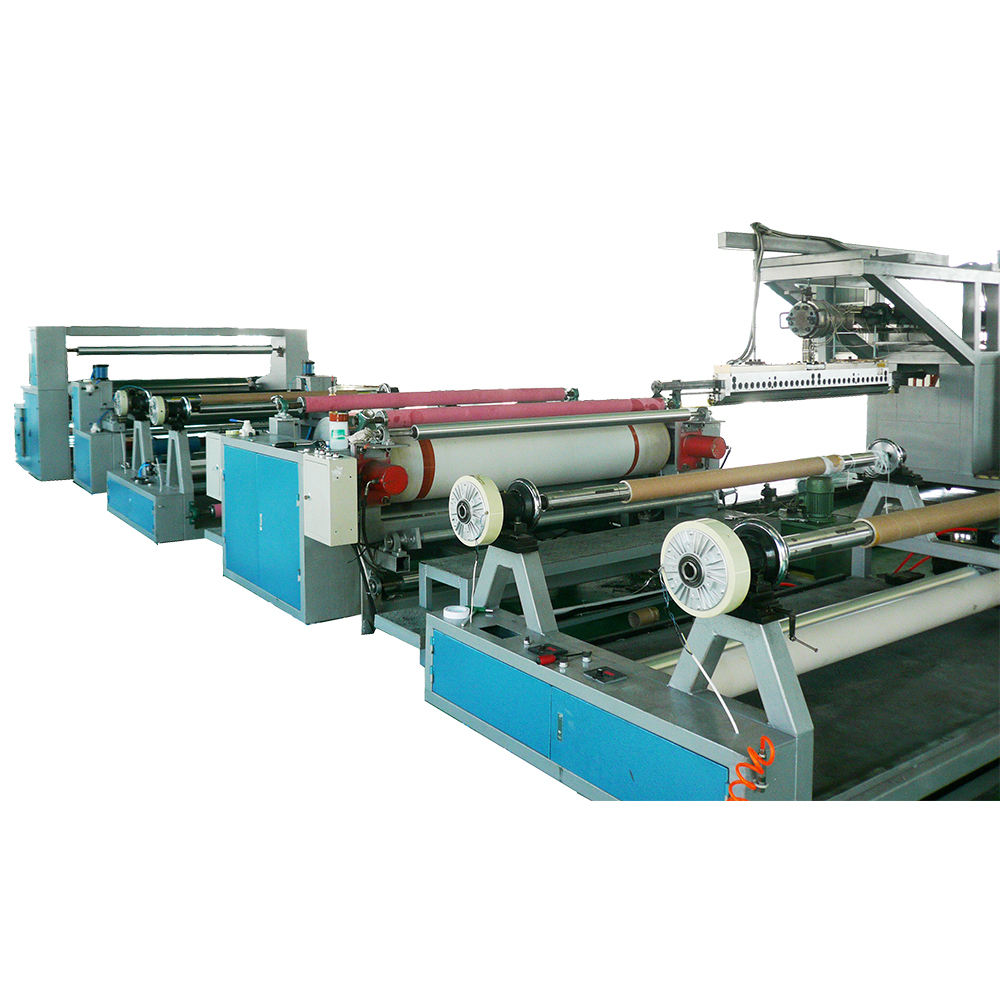

2400 Nonwoven Fabric Lamination PE Film Coating PE Film Machine

Nonwoven lamination machine is a complete product line adopting casting extrusion process.
PE or PP material mixed with addtives is fed through feeding system to extruder and flat head extrusion die. Hot melt is coated on top of base fabric or paper from the unwinder passing calender rollers for forming and chill down, Then guided by pulling rollers and trimmed by two knives on both sides, the coated material is take up into rolls at winder station.
PRODUCT SPECIFICATIONS
No
Model&Specification
DL-1800
DL-2000
DL-2400
DL-2600
1
Working width
1600mm
1800mm
2200mm
2400mm
2
Thickness range of Laminating film
0.01-0.1mm


3
Laminate layers
Three layers,two layers,Multi-layers


4
Suitable fabrics
Woven fabrics,Non-woven fabrics,EVA Foam,Paper etc.


5
Screw diameter L/D
φ90 33:1
φ100 33:1
φ110 33:1
φ1200 33:1
6
Installation power
110KW
130KW
160KW
180KW
7
Machine size
14000X12000X4000mm


Note: All the machines can be manufactures according to customer's requirement.
Max. torque
500N.m


Usage

Be suitable for laminating floor mat, nonwoven-fabrics cloth, paper, woven cloth,
geotextile with mono-layer or multi-layer or multi-layer film. All can be designed and made according to customers’ requirements.

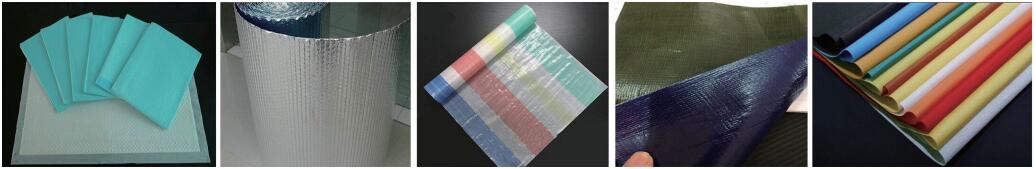

Final products sample
SIMILAR PRODUCTS
FAQ
Q1. Are you a factory or trading company?
A1. We are established in 2001, a actual factory and manufacturer in the line of plastic machine for over 20 years.

Q2. Where is your factory located? How can I visit there?
A2. Our factory is located in Changzhou City, Jiangsu Province, China, about one hour by train from Shanghai. All our clients, from home or abroad, are warmly welcomed to visit us!

Q3. What about your machine quality?
A3. Our factory has more than 20 years experience in mechanical processing; all our machines already get ISO9001,CE certificate; already exported to many countries and areas; already got customer’s good reputation.

Q4. What about your machine price?
A4Anytime we will garanteen quality first, no matter price is good or not for us. Quality is first, on the top quality basis, of coursse you will get r easonable and satisfied price!

Q5. How about the payment term?
A5 For new customer, our payment terms is 30% T/T in advance before production, the balance 70% should be paid before delivery.

Q6. What about the delivey date?
A6.Due to the non-standard size machine, we need to book all the relative parts according to the requirement of the clients, the delivery date would be 1-- 3 months accordingly.

Q7. How about the packaging?
A7. Standard Safe Export Packaging. Use the PE foam sheet pack every part to avoid damaging. Use anti-rust oil to the metal parts and cover with stretch film. Use wood to fix the machines in container to make sure them can not move.Or as per customer's requirements.

Q8. How can you ensure the machines' quality after we put the order?
A8. Before the delivery, we will send you machines' pictures and videos, or you can come to our factory to make the quality checking by yourself,or by the third party inspection organization that contacted by your side. Q9. What about your main market? A9.Our products exported to Southeast Asia, Mideast, Africa, Europe, America, Oceania, etc, such as Indonesia, Taiwan, Singapore, Japan, Korea, Egypt, Syria, India, Russia,Kazakhstan, Mexico, New Zealand,etc. Q10. What about warranty and do the engineers available to overseas? A10: One year warranty. During this special period, if the machine has some problems, we can support guidance on line.
