The application of technology plays an important role in the developing and manufacturing process of the product. Widely used in the application scene(s) of Plastic Extruders, the product has won wide popularity. Our company has been investing heavily in R&D and upgrades of technologies. This has given initial results eventually. As Nonwoven Lamination Machine DL advantages are discovered continually, it has been widely used in the field(s) of Plastic Extruders. In the future, Changzhou Dali Plastics Machinery Co., Ltd. will make full use of the wisdom of our talents and update our technologies to keep up with the trends, to make our dream of being a world-famous company come true.

Application:FilmPlastic Processed:PE, Lldpe, LDPE
Condition:NewScrew Design:Single-screw
Screw Material:38CrMoALAScrew diameter (mm):120
Screw L/D Ratio:33:1Screw Speed (rpm):60 rpm
Showroom Location:Egypt, Viet Nam, India, Russia, MalaysiaPlace of Origin:Jiangsu, China
Brand Name:DaliVoltage:380V
Dimension(L*W*H):14000x12000x4000Power (kW):280
Weight:38000 KGWarranty:1 Year
Key Selling Points:Competitive PriceApplicable Industries:Garment Shops, Manufacturing Plant, Home Use, Other
Marketing Type:Hot Product 2022Video outgoing-inspection:Provided
Machinery Test Report:ProvidedWarranty of core components:1 Year
Core Components:Bearing, Motor, Pump, Gear, PLC, Pressure vessel, Engine, Gearbox, Screw, T-dieAfter-sales Service Provided:Engineers available to service machinery overseas
Suitable fabrics:plastic woven fabrics, nonwoven fabrics, paperThickness of compound film:0.015-0.8mm
Heating power:60-85kwCooling method:circulating water cooling
Lamination:nonwoven laminationWinder:automatic lamination machine
Brand:Dali nonwoven lamination machineCertification:CE

Nonwoven Lamination Machine


     Nonwoven lamination machine is a complete product line adopting casting extrusion process. PE or PP material mixed with addtives is fed through feeding system to extruder and flat head extrusion die. Hot melt is coated on top of base fabric or paper from the unwinder passing calender rollers for forming and chill down, Then guided by pulling rollers and trimmed by two knives on both sides, the coated material is take up into rolls at winder station.



  • Feeding systems with vacuum feeder
  • Extruder with screen changer
  • T die of internal cavity
  • Double station unwinder with automatic turnover mechanism
  • Calender with horizontal and vertical arrangement of the rolls
  • Chill rolls where extruded melt is transformed into a film and quickly cooled down
  • Embossing roll forming embossing pattern on base fabric
  • In-line triming equipment
  • Film guiding system
  • Surface, centre/surface and winding unit

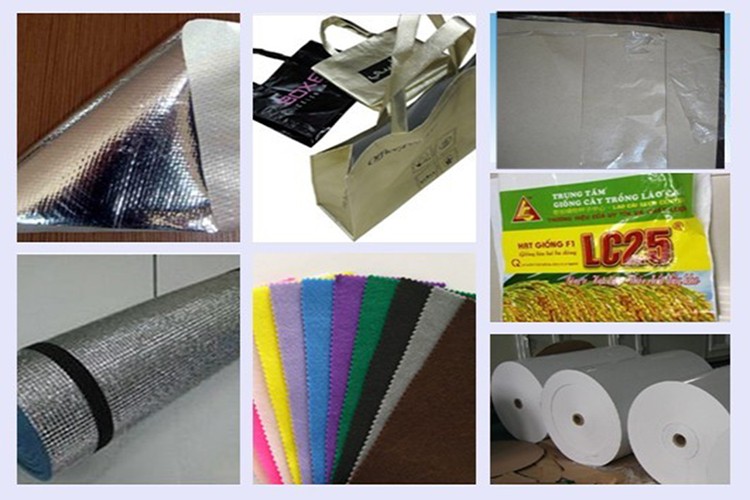

Usage: Be suitable for laminating floor mat, nonwoven-fabrics cloth, paper, woven cloth, geotextile with mono-layer or multi-layer or multi-layer film. All can be designed and made according to customers’ requirements.



Nonwoven Lamination Machine DLNonwoven Lamination Machine DLNonwoven Lamination Machine DLNonwoven Lamination Machine DL
